Features
- Large touch screen + shortcut keys, easy to operate
- Large-capacity polymer lithium battery, with superlong working hours
- Intelligent testing, simple use, powerful function
- Media of Memory Card + SD card, with super large storage capacity of traces
- Able to meet FTTx testing needs Several wavelengths can be chosen
- Solid casing design, dustproof and shockproof

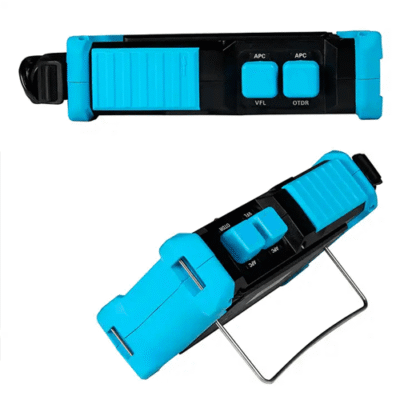

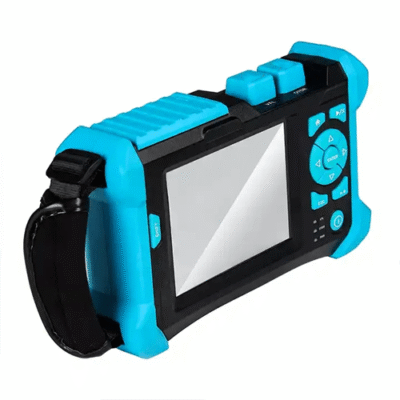

- Optical Time Domain Reflectometer
- More powerful performance, much easier operation, more efficient work
- To meet the needs on the wide range of measurement by FTTx
- Metropolitan Area Network, Backbone Network and other optical networks
Technical Specifications
| Wavelength | 850 nm or 1300 nm, 1310 nm or 1550 nm, 1310 nm or 1490 nm or 1550 nm, 1625 nm |
| Dynamic Range | 21 dB² or 19 dB², 32 dB² or 30 dB², 32 dB² or 30 dB² or 30 dB², 34^4 dB², 36^5 dB² |
| Push Width | 5 ns,20 ns, 40 ns, 80 ns, 160 ns, 320 ns, 640 ns, 1280 ns, 2560 ns, 5120 ns, 10240 ns, 20480 ns |
| Event Blind Zone | 10 m³ ≤1. 8 |
| Attenuation Blind Zone | 20 m³ ≤10 |
| Display | 5.6 in (14.22 cm) LCD touch screen |
| Linearity | ±0.05 dB |
| Loss Threshold | 0.05 dB |
| Loss Resolution Ration | 0.01 dB |
| Sampling Resolution Ration | 0.41 ft to 26.24 ft (0.125 m to 8 m) |
| Sampling Point | 32 K |
| Distance Uncertainty | ± (3.21 ft (1 m) + 5 × 10 × distance + sampling interval) JDSU PON OTDR 1310 nm, 1550 nm, 1650 nm OTDR JDSU MTS-6000 Price |
| Distance Scope | 0.18 mi to 111.84 mi (0.3 km to 180 km) |
| Typical Real-time Refreshing Duration | 0.2 s |
| Memory Capacity of Trace | SD Card (4G) ≥1000 pcs |
| Duration Of Measurement | Defined by users: 5s 10s 15s 30s or 1min 2min 3min JDSU PON OTDR 1310 1550 1650nm OTDR JDSU MTS-6000 |
