Overview

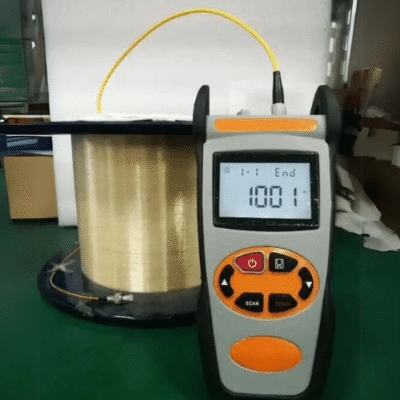

The Inventory Master ethernet testers are the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates powerful analysis software, which enables the HS5001 fiber ranger to detect fiber faults’ location more accurately and easier.
Features
- Portable, rugged, lightweight; Easy to use;
- More accurate testing results and better repeatability
- Up to 8 fiber faults can be detected in each measurement
- Automatic Pulse Width Control design to ensure a convenient operation
- Easy to identify the faults’ location
- Liver fiber detection
- OTDR connector for the fiber ranger port
- Built-in visual fault locator (VFL), conveniently to find the faults in dead zone
- Long battery life, up to 5000 measurements operation
- Data storage function, up to 1000 test records
- USB communication port for saved testing records download
Technical Specifications
| Operating Wavelength | 1550 nm (1310 nm Optional) | |
| Fiber Type | 0.00035 in or 0.0049 in (9 um or 125 um)SM Fiber | |
| Optical Connector Type | FC or PC | |
| Detector Type | InGaAs | |
| Peak Power of laser | ≥60 mW | |
| Max. Displaying Distance | Reflection Event | 37.28 mi (60 km) (≥1 dB) |
| Non-reflection Event | 12.42 mi (20 km) (≥2.5 dB) | |
| Measurement Unit | M | |
| Reflection Event Dead Zone | 49.21 ft (15 m) | |
| Distance Accuracy (Reflection Event) | ± (6.56 ft (2 m) +2 x 10(-4) x Distance) | |
| Wavelength of VFL Option | 650 nm | |
| Output Power of VFL Option | >=1 mW | |
| Date storage capacity | 1000 | |
| Communication Port | USB | |
| Power Supply | Alkaline Battery (3pcs AA 4.5V Batteries) | |
| Battery Operating Time | ≥5000 measurements | |
| Working Temperature | 23 °F to 104 °F (-5 °C to 40 °C) | |
| Storage Temperature | 14 °F to 140 °F (-10 °C to 60 °C) | |
| Humidity | 0% to 85% (non-condensation) | |
| Dimension | 7.87 in x 3.54 in x 1.96 in (200 mm x 90 mm x 50 mm) | |
| Weight | 0.7 lb (320 g) | |
