Features

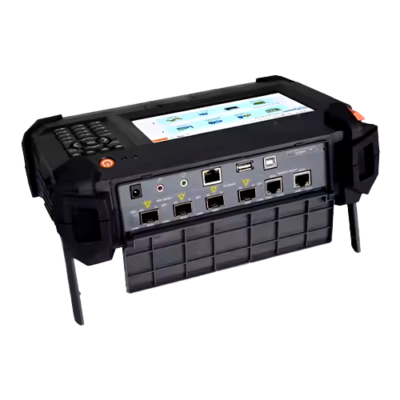

- Supports 2 10/100/1000BASE-T RJ45 ports and 2 100/1000BASE-X SFPs Optical port and 2 10GE SFP+ optical ports
- Capable of generating 10M~10GB/S traffic and supporting LAN/WAN mode
- Supports layer 1-4 error rate testing
- Supports up to 16 business traffic generation for multi-service testing
- Supports standard RFC2544 testing
- Support standard Y.1564 testing
- Support for OAM testing (optional)
- Support VLAN testing, priority configuration, and VLAN Q-IN-Q testing
- Support MPLS testing and Level 3 MPL S nested testing
- Support measurement of business service interruption time
- Support COS and TOS/DSCP business priority testing
- Capable of capturing and analyzing various data packets
- Support intelligent detection and remote loopback testing
Technical Specifications
| Display | 7-inch TFT color touch screen, 960 x 480 |
| Interface | USB 2.0 port; RJ-45 LAN |
| Storage Capacity | 8GB |
| Network | LAN, Ethernet |
| Ports | 2 10/100/1000BASE-T RJ45 ports, 2 100/1000BASE-X SFP optical ports, 2 10GE SFP+ optical ports |
| Traffic Generation | Capable of generating 10M~10GB/S traffic, supports LAN/WAN mode |
| Error Rate Testing | Supports Layer 1 to 4 error rate testing |
| Multi-Service Testing | Supports up to 16 business traffic generations |
| Battery | Rechargeable lithium battery with continuous working time greater than 4 hours |
| Type | Ethernet Tester |
| Power Supply | AC/DC adapter, input: 100 V to 240 V AC, 50 Hz/60 Hz, Maximum current: 2S; Output: 24 V DC, 90 W |
| Size (mm) | 11.1 in x 7.32 in x 2.95 in (28.2 cm x 18.6 cm x 7.5 cm) |
| Weight (Kg) | 6.39 lb (2.9 Kg) |
