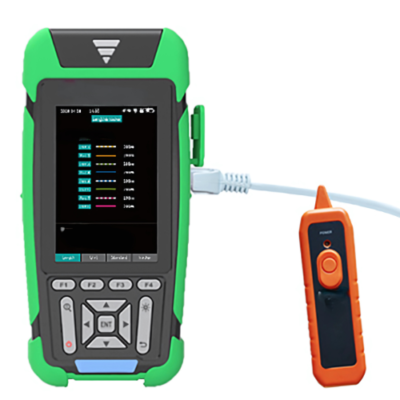

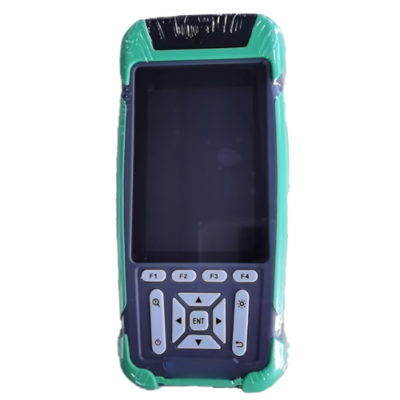

Features
- Touchscreen Operation
- Event Mapping Capability
- Integrated Flashlight
- FTTH Testing Ready
Technical Specifications
| Wavelength | 1310 nm to 1550 nm (±20nm) |
| Fiber Type | G.652 |
| Dynamic Range | 26 dB to 24 dB |
| Event Blind Zone | 2.5 m (8.2ft) |
| ATT Blind Zone | 8 m (26.2ft) |
| Test Range | 500 m (1,640 ft) to 128 km (79.5 mi) |
| Pulse Width | 3 ns to 10 us |
| Ranging Accuracy | ± (3.28ft + Sampling Interval + 0.005% × Test Distance) |
| Loss Accuracy | ±0.2 dB/dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.05 m (2 in) to 8 m (315 in) |
| Reflection Accuracy | ±3 dB |
| Data Storage | Internal: ≥600; External: TF Card |
| Laser Safety Level | Class II |
| File Format | SOR Standard File Format |
| Connector | FC/UPC (Interchangeable SC, ST) |
| OPM Wave Range | 800 nm to 1700 nm |
| Interface Type | Universal Joint FC/SC/ST |
| Test Range | -50 dBm to +26 dBm |
| Uncertainty | ±5% |
| Frequency Identification | CW/270/330/1k/2kHz |
| Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650 nm |
| LD Type | FP-LD |
| Output Power | ≥-5 dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW, ±0.5 dB/15 min (Test after 15 minutes of preheating) |
| RJ45 Cable Length Measurement | 300 m (984ft) |
| Display | Toughened glass, 3.5-inch Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-Battery: 3.7V, 4000mAh; Adapter: 5VDC, 2A |
| Battery Life | Standby >20h; Measuring Time >12h |
| Operating Temperature | -4 °F to +122 °F (-10 °C to +50 °C) |
| Dimension | 6.8 in × 3.2 in × 1.5 in (17.3 cm × 8.2 cm × 3.7 cm) |
| Weight | ≤0.77 lbs. (≤350 g) |
