Overview

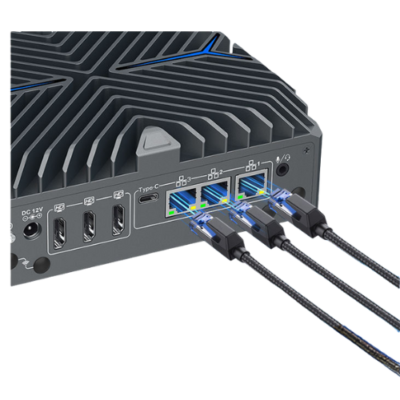

The Inventory Master’s Fanless Industrial Mini PC with Intel Core Ultra & AI Boost is a 14th Gen Core Ultra processor mini PC boasts 12 cores, delivering exceptional processing power for demanding tasks, making it suitable for use in office, home, and educational settings. With three display ports and a Type-C port, this mini PC supports up to four displays, ideal for multitasking and multimedia applications.The device features two USB 3.1 ports, two USB 2.0 ports, and three Intel 2.5 GBE ports, ensuring fast data transfer and reliable network connectivity. This mini PC comes with a private mold design and supports various plug types, including US, JP, CN, AU, UK, and EU, allowing for easy international deployment.
Technical Specifications
| Material | Aviation-grade aluminum alloy, fanless efficient heat dissipation |
| Processor | Intel Core Ultra 5 125U (12 cores, 14 threads, Max Turbo 4.3 GHz) Intel Core Ultra 7 155U (12 cores, 14 threads, Max Turbo 4.8 GHz) |
| NPU | Intel AI Boost (Max Frequency 1.4 GHz) |
| Memory | 1 x DDR5 4800 SODIMM memory slot, Max 32 GB |
| Storage | 1 x M.2 2280 Slot 1 x 2.5” HDD or SSD |
| Display Chip | Intel Graphics |
| Display Port | 3 x HD, 1 x Type-C (Max resolution 4096×2160 @ 60Hz) |
| Front I/O | 2 x COM (RS232/485), 1 x SIM card slot, 2 x USB 3.1, 2 x USB 2.0, 1 x Power Button |
| Rear I/O | 1 x DC, 3 x 2.5G LAN, 1 x Audio (supports Mic & Speaker) |
| Expansion Slot | 1 x M.2 2280 M-Key slot (NVME protocol, PCIe 4.0 x4) 1 x M.2 2230 E-Key slot (supports WiFi, BT) 1 x Mini PCIe slot (PCIe & USB2.0, supports 4G/WiFi) External SIM card slot (Nano card) Additional Expansion (not included in standard shipments): 2 x USB 2.0, 4 x GPIO |
| Network | 3 x Intel i226-V 2.5G LAN |
| Other Functions | Auto power on Timing boot Wake on LAN PXE boot Watchdog (0–255 Level) TPM 2.0 security encryption |
| Power Supply | DC 12V |
| Applications | Industrial Control, Industrial Automation, Robotics, IoT Gateway, Edge Computing, Machine Vision, AGV/ARM, etc. |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) (Commercial HDD) -4°F to 122°F (-20°C to +50°C) (Industrial SSD), Surface air flow |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 6.69 in × 5.51 in × 2.28 in (170 mm x 140 mm x 58 mm) |
| Weight | 2.43 lb (1.1 kg) |
