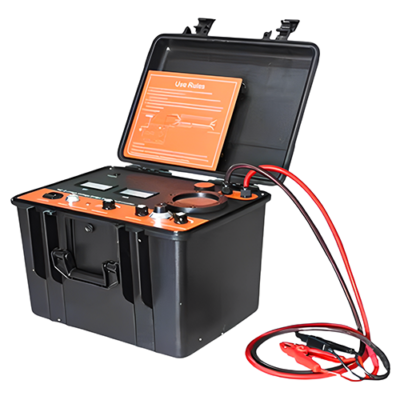

Fault Location Bridge Tester with Adjustable Test Voltage – The Inventory Master

Name: Fault Location Bridge Tester with Adjustable Test Voltage – The Inventory Master - The Inventory Master
SKU: TIMCT-313

This continuity tester provides precise high voltage and current measurements, offering adjustable settings and accurate fault location for cables.

SKU: TIMCT-313 Category: Industrial Ethernet

Features

Test Pulse	0.2 μs to 9.9 μs, Arbitrary Adjustable
Deviation	No more than ±0.82 ft (±0.25 m)
Test Distance	Up to 102.53 mi (165 km)
Sampling Frequency	30 M, 60 M, 120 M
Test Voltage	0 kV to 15 kV, Negative High Pressure, Continuously Adjustable
Maximum Current	30 mA
Test Ratio Accuracy	± (0.2% x L ± 3.28 ft (1 m))
Output Voltage (Outer Sheath)	0 to 15kV, Continuously Adjustable
Output Current (Outer Sheath)	30 mA
Power Source	AC 220 V ± 10%
Anti-interference Ability	> 100 VAC
Dimensions (L x W x H)	18.82 in x 14.17 in x 12.44 in (47.8 cm x 36 cm x 31.6 cm)
Weight	26.46 lbs (12 kg)
