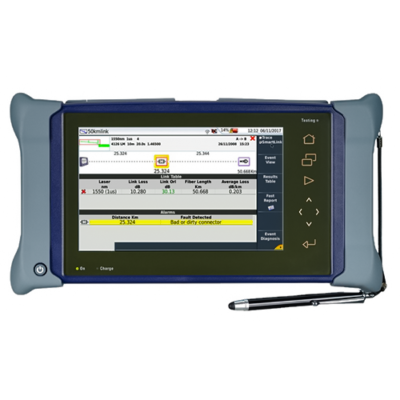

Features
- Bi-modular platform design
- Optional 7 in touch screen
- Wireless access via Bluetooth
- Ethernet testing up to 1G
Technical Specifications

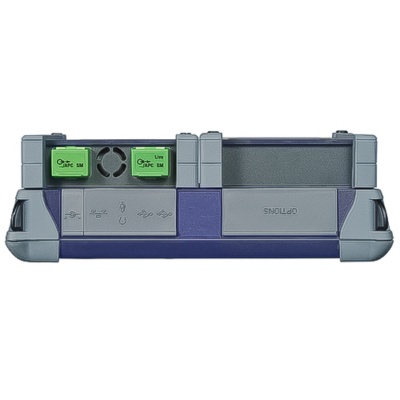

| Interchangeable Optical Connectors | FC, SC, DIN, LC (PC or APC) and ST (PC) |
| Screen Type | 7 in display (touching screen) |
| Pattern | Bi-Modular Platform |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 37/35 db |
| Wireless Access and Testing | Wi-Fi 802.11b/g and Bluetooth |
| Multi Function Port | Optional VFL and power meter/source |
| Mode | Automatic or dual cursor |
| Laser Safety Class (21CFR) | Class 1 |
| Distance Units | Kilometers, feet, and miles |
| Group Index Range | 1.30000 to 1.70000 in 0.00001 steps |
| Number of Data Points | Up to 128,000 or 256,000 data points |
| Display Range | 0.31 mi to 161 mi (0.5 km up to 260 km) |
| Display Resolution | 0.001 dB |
| Linearity | ±0.03 dB/dB / ±0.05 for LA |
| Threshold | 0.01 dB to 5.99 dB in 0.01 dB |
| CW Source Output Power Level | -3.5 dBm |
| Power Level Range (MM/SM) | -3 dBm to -30 dBm / 0 dBm to -55 dBm |
| Calibrated Wavelengths (SM) | 1310 / 1490 / 1550 / 1625 / 1650 nm |
| Calibrated Wavelengths (MM) | 850 / 1300 nm |
| Measurement Accuracy (SM) | ±0.5 dB |
| Measurement Accuracy (MM) | ±1 dB |
| Cursor Resolution | 0.39 in (1 cm) |
| Sampling Resolution | 1.57 in (4 cm) |
| Accuracy | ± 3.28 ft (1 m) ±Sampling resolution ±1×10⁻⁵ x distance (excluding group index uncertainties) |
| Weight | 0.77 lb (0.35 kg) |
| Dimensions (w x h x d) | 5 in x 5.27 in x 1.57 in (12.8 cm x 13.4 cm x 4 cm) |
