Technical Specifications
| Protocol | EPCGlobal UHF class1 Gen2/ISO 18000-6C/ISO 18000-6B |
| Work Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| RF Output | 33 dBm ± 1 dBm |
| RF Output Adjust | 1 dBm each step |
| Receive Sensitivity | <﹣85 dBm |
| Tag Reading Speed | > 800 times per s |
| Tag Reading Distance | 0 ft to 82.02 ft (0 m to 25 m) (depending on reader parameter set, antenna gain, tag type etc.) |
| Tag Writing Distance | 0 ft to 32.8 ft (0 m to 10 m) (depending on reader parameter set, antenna gain, tag type etc.) |
| Tag RSSI | Support |
| Antenna Connect Protection | Support |
| Support Area | USA and Canada and other comply with FCC Part 15 area Europe and other comply with ETSI EN 302 308 area China, India, Japan, Korea, Malaysia etc. |

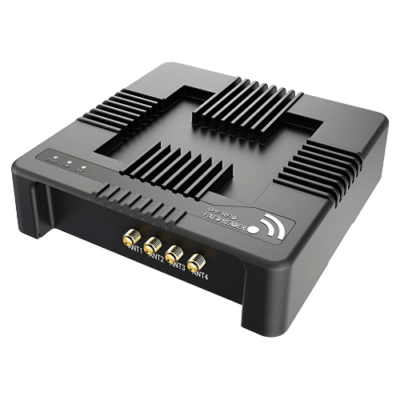

| Antenna Ports | 4 TNC antenna ports |
| Communication Port | 10 M to 100 M tcp/ip internet, RS232, RS485, Wiegand26/34 |
| WiFi (Option) | Support EEE 802.11 n/b/g |
| Bluetooth（Option） | Support Bluetooth 4.0 |
| Communication Rate | RS232 with 9600 bps to 115200 bps, RJ45 with 10 Mbps |
| Reliable Upgrade | Upgrade mechanism can be extended |
| Input Or Output (GPIO） | 2 inputs, 1 output |
| SDK Language | VC, VB, JAVA, C#, C++ etc. |
| IP Protection | IEC IP51 |
| Power Supply | With 220 V AC input, the output of +12 V/3A DC power converter |
