Overview

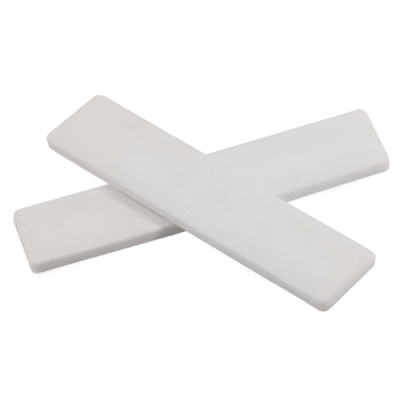

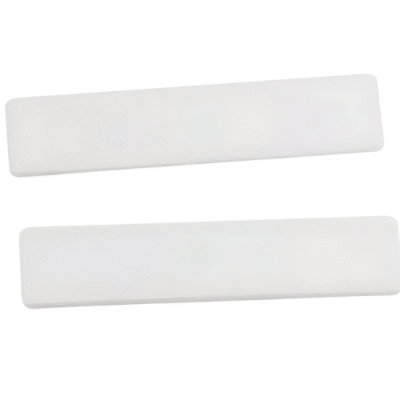

The Inventory Master Medical Facility Durable Waterproof UHF Rain Silicone RFID Laundry Tag is flexible, soft and durable, ideal for plain weave linens and apparel. The ultra-robustness of the laundry tag design and long deployment cycles material allowing the UHF tag to be reused in another linen over the expected life cycle time, reducing total cost of ownership. Silicone UHF laundry mini tags are barely noticeable when sewn onto linen.
Features
- Can customize size for customers
- Soft material
- Smaller module inside the tag
- Can stick under 60 bar pressure
- Personnel patrol management
Technical Specifications
| Compliance | EPC Class1 Gen2; ISO18000-6C |
| Frequency | 860 MHz to 960 MHz (Can customize frequency) |
| Chip | UCODE® Series Impinj MONZA® series |
| Memory | EPC 96 bits, User 32 bits EPC 128 bits, User 0 bits |
| Read or Write | Yes (EPC) |
| Data Storage | 20 years |
| Lifetime | 200 wash cycles or 2 years (whichever comes first) |
| Material | Silicone |
| Mechanical Resistance | Up to 60 bars |
| Color | White |
| Power Supply | Passive |
| Chemicals | Normal common chemicals in the washing processes |
| Storage Temperature | -40 °F to 185 °F (-40 °C to +85 °C) |
| Operating Temperature | 1) Washing: 90 °C (194 °F), 15 min, 200 cycle 2) Pre-drying in Tumbler: 180 °C (320 °F), 30 min 3) Ironer: 180 °C (356 °F), 10 s, 200 cycles |
| Dimension | 2.1 in x 0.4 in x 0.07 in (55 mm x 12 mm x 2 mm) |
| Weight | 0.02 oz to 0.04 oz (0.8 g to 1.2 g) |
