Overview

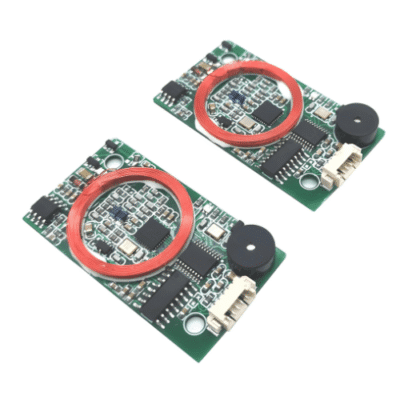

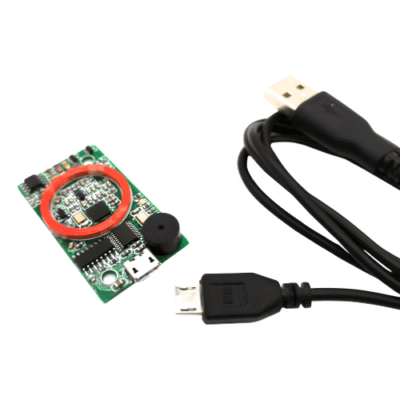

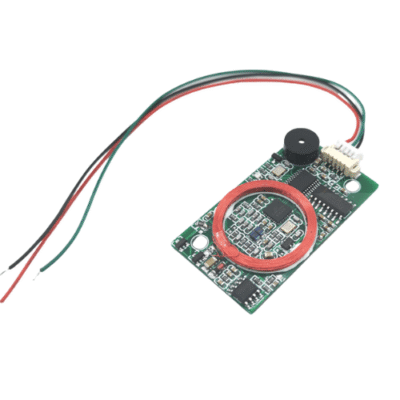

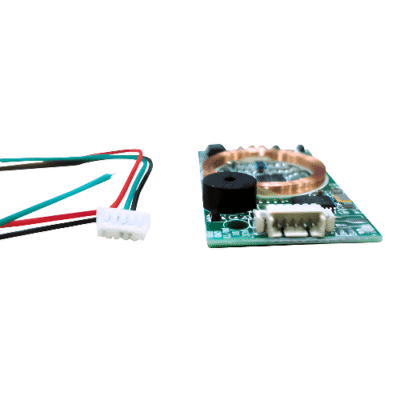

The Inventory Master RFID reader contactless smart card modules is a contactless smart card reading module developed that supports 125 Khz and 13.56 Mhz card. It adopts a highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.
Technical Specifications
| Frequency | 125 Khz and 13.56 Mhz |
| Standard | ISO14443A |
| Interface Option | TLL, USB |
| Power Supply | 3.3 V to 5 V |
| Reading Range | 0 cm to 5 cm |
| Read/Write | read UID only |
| Supporting Card | EM4200TK4100Mi S50 or S70Ultralight |
| Current | < 70 mA |
| Read Distance | 0 cm to 5 cm |
| Application | PilesSmart wine cabinetPrinter or duplicatorAttendance machineAdvertising tablet PCMedical Electronic EquipmentIdentification card scannerSmart game equipmentHand-held intelligent terminalPOS consumption endpoint |
| Operating Temperature | 14 °F to 50°F (-10 ℃ to -50 ℃) |
| Storage Temperature | -4 °F to 176°F (-20 ℃ to 80 ℃) |
| Size | 1.9 in x 1.1 in x 0.3 in (50 mm x 30 mm x 9 mm) |
