Overview

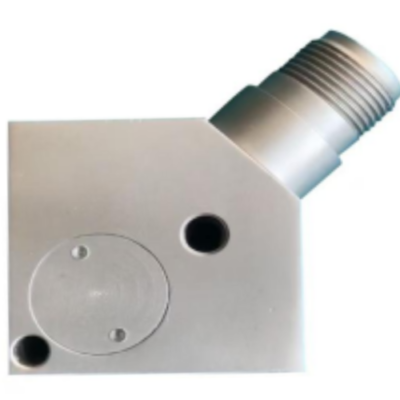

The Inventory Master – General Purpose Triaxial Vibration Sensor is designed for high-performance vibration monitoring across a wide range of industrial applications. Featuring a shear design with ceramic materials, it minimizes environmental impact and ensures excellent temperature stability. With a measurement range of 0–20 mm/s, frequency range of 1–5 kHz, and resonant frequency around 15 kHz, it delivers high resolution, low noise, and reliable sensitivity. The sensor withstands impact limits up to ±2000 g and operates effectively in temperatures from -40 to +120 °C. Built with a robust 304 stainless steel housing, it offers durable performance and long service life. Supplied with accessories including M5/BNC cables, qualification certificate, and hexagonal screw, it is ideal for versatile vibration measurement needs.
Features
- Shear design reduces environmental impact on signals
- Ceramic Materials with Wide Temperature Coefficient
- High resolution and low noise
- High-cost performance.
Technical Specifications
| Specification | Details |
| Output | 4 to 20 mA |
| Measurement Range | 0 to 20 mm/s (0 to 0.79 in/s) |
| Frequency Range (±10%) | 1 to 5 kHz |
| Resonant Frequency | 15 kHz |
| Resolving Power | 1 mg |
| Transverse Sensitivity | ≤5% |
| Impact Limit | ±2000 g |
| Insulation Resistance | >10⁹ Ω |
| Sensitive Parts | Ceramics, Shear |
| Electrical Connector | φ 0.20 in Coaxial Jack/M6 |
| Installation Method | 2-M5 |
| Supplied Accessories | 1. Three (6.56 ft) M5/BNC cables 2. Hexagonal screw (M5) |
| Operating Temperature Range | -40 to +120 °C ( -40 °F to 248 °F ) |
| Weight | 50 g (1.76 oz) |
| Size/Dimension | See diagram |
