Overview

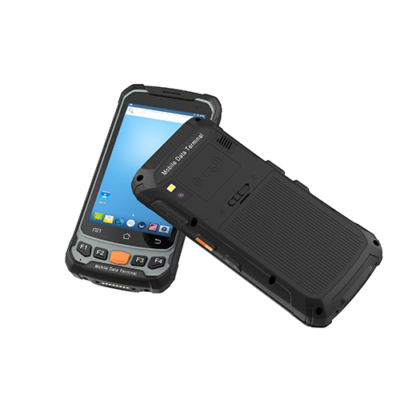

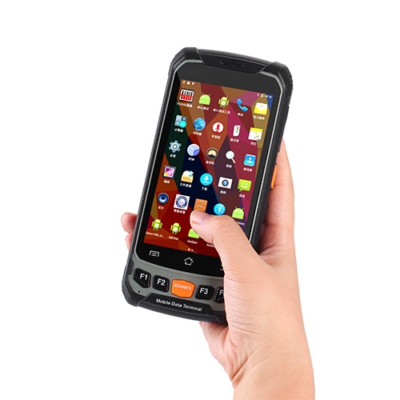

The Inventory Master Barcode Scanner Mobile Pda RFID Reader extend Handheld-Wireless product serials into Android OS 7.0 with 4G high speed network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, (1.5 m) 4.5 ft drop survival, ergonomic design, over-molding structure, quick- charging technology, and 4.7 in (11.9 cm) tough Gorilla Glass 3 screen are all equipped to ensure performance. The latest 1.3 GHz quad-core processor, 2 GB RAM or 16 GB ROM and up to 128 GB expansion are all designed to boost experience level.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 920 MHz to 925 MHz |
| Protocol | EPC C1 GEN2 or ISO 18000-6C |
| Operating System | Android 7.0 |
| Style | Handheld Computer |
| Memory Capacity | ≥ 256 MB |
| Processor Type | Quad A53 1.3 GHz quad-core |
| Screen Size | 4.7 in (11.9 cm) |
| Keypads | 3 TP keys, 5 function keys, 4 side buttons |
| Expansions | 2 PSAM, 1 SIM, 1 TF |
| Battery | Rechargeable li-ion polymer, 3.8 V, 4750 mAh |
| Storage | 2 GB RAM, 16 GB ROM, MicroSD (max 32 GB expansion) |
| SDK | Handheld-Wireless Software Development Kit |
| R Or W Range | 3.2 ft to 4.9 ft (1 m to 1.5 m) |
| Antenna Gain | Circular antenna (2 dBi) |
| Language | Java |
| Display | Gorilla Glass 3 9H 4.7 in (11.9 cm) |
| Backlight | LED backlight |
| ESD | ± 15 kv air discharge, ± 8 kv direct discharge |
| Drop Specification | 5 ft (1.5 m) drop to concrete across the operating temperature range |
| BARCODE READER (OPTIONAL) | |
| 1D Barcode | 1D Laser engine Symbol SE955 Symbologies All major 1D barcodes |
| 2D Barcode | Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
| RFID LF | Frequency 125 KHz or 134.2 KHz (FDX-B/HDX) Protocol ISO 11784&11785 R/W Range 0.7 in to 3.9 in (2 cm to 10 cm) |
| RFID HF Or NFC | Frequency 13.56 MHz Protocol ISO 14443A&15693 R/W Range 0.7 in to 3.1 in (2 cm to 8 cm) |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Operating Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Storage Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Dimension | 6.3 in X 3.0 in 0.8 in (162 mm X 78 mm X 22 mm) |
| Weight | 12.3 oz (350 g) |
