Features

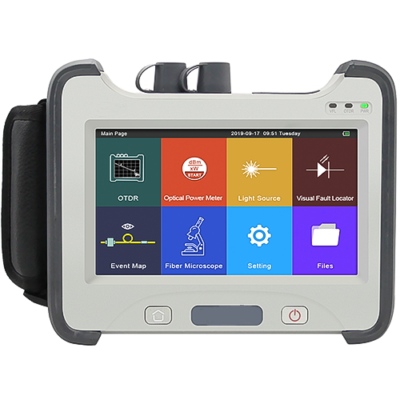

- Smart and rugged design
- Lightweight and portable device
- Real time splicing monitoring
- Accurate faults point detection
Technical Specifications
| Pulse Width | 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs |
| Testing Distance | 1.640 ft, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.72 mi, 74.56 mi, 99.42 mi (500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km) |
| Measurement Time | Use-defined (smart link); with real-time measurement function |
| Linearity | ≤0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.03 ft (0.01 m) |
| Sampling Resolution | minimum 0.8 ft (0.25 m) |
| Sampling Point | Maximum 128,000 points |
| Dynamic Range | 32/30dB |
| Color | Blue, Orange, grey, black |
| OPM Test Range | -70 to +10db or –50 to +26dB |
| Distance Accuracy | ±3.3 ft (1m) +measuring distance×3×10-5+sampling resolution) |
| Internal Visual Source | 10 mw, CW/2Hz |
| Stable Laser Source | >-5 dBm |
| Data Storage | 80000 groups of curves |
| Interface | 3 USB port |
| Display | 7-inch capacitive touching screen |
| Battery | 7.4 V/6.6 Ah lithium battery, continuous 8-10 hours |
| Working Temp | 14 ℉ to 122 ℉ (-10 ℃ to + 50 ℃) |
| Storage Temp | 4 ℉ to 167 ℉ (-20 ℃ to +75 ℃) |
| Relative Humidity | ≤90 %, non-den |
| Dimension | 9.05 in x 7.28 in x 2.75 in (23 cm × 18.5 cm × 7 cm) |
| Weight | 3.30 lb. (1.5 kg) |
