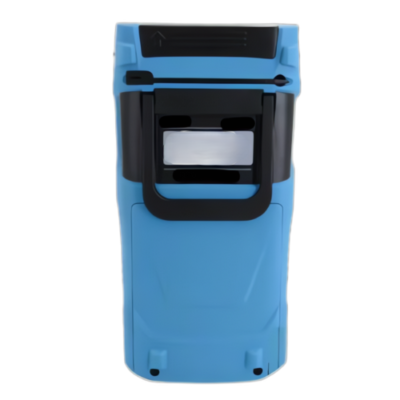

Features
- Compact Fiber Tester
- Supports Multiple Wavelengths
- Accurate Power Measurement
- Robust Performance
Technical Specifications
| Color | Blue |
| Use | FTTH, FTTX, FTTB Network |
| Trademark | Customized |
| Production Capacity | 500 units/day |
| Measurement Range (DBm) | -70 dBm to +10 dBm, -50 dBm to +26 dBm |
| Wavelength Range (Nm) | 800 to 1650 |
| Calibrated Wavelength | 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm (other wavelengths available on request) |
| Detector | Ingas |
| Accuracy | <±3% (-10 dBm, 71.6°F (22°C)) |
| Resolution | Linearity: 0.1%, non-linearity: 0.01 dBm |
| Connector | Movable FC/PC SC/PC (ST optional) |
| Emitter | FP-LD |
| Wavelength (Nm) | 1310/1550 nm |
| Connector | FC/PC (SC/ST optional) |
| Output Power | ≥-5 dBm |
| Output Stability (DBm) | ±0.04 @ 68°F (20°C) for 15 minutes |
| Modulation | CW/270 Hz/1 KHz/2 KHz |
| Fiber Type | SM |
| Wavelength | 650 nm |
| VFL Output Power | ≥10 mW |
| Mode | 0 Hz, 1 Hz, 2 Hz |
| Fiber Type | SM/MM |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 9.8 in × 7.9 in × 3.1 in (25 cm × 20 cm × 8 cm) |
| Weight | 3.3 lb. (1.5 kg) |
