Overview

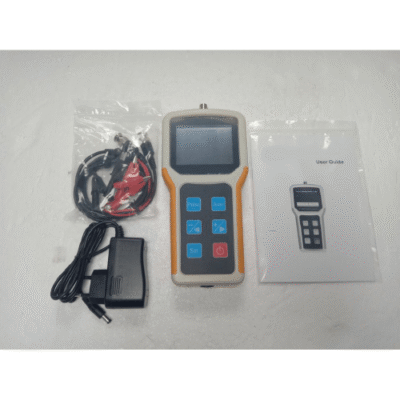

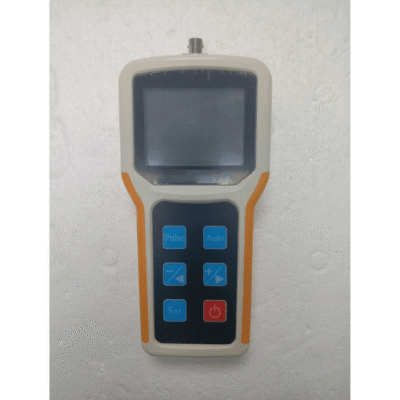

The Inventory Master network cable tester ethernet is a portable handhold device used for locating broken faults, cross fault, insulation fault and so on. It can be used to measure the cable length, wave velocity and distinguish the middle joints and terminals. It is a simple locating device, adapts to all kinds of cable and especially, the tele computer cable. TDRL (Time Domain Reflectometry) method makes it possible to measure broken faults, cross faults, insulation faults and so on.
Features
- Auto power-off when sleeping and low battery voltage
- Friendly user interface, easy to operate
- Supply by dry batter or recharge battery
- Handheld device, easy to carry
- Digital gain adjustment control
- Digital waveform automatically
- Top grade ARM single chip micro computer
- Large colorful LCD display
- High energy lithium battery
Technical Specifications
| Impulse Range | 30 V |
| Impulse Width | 80 ns to 5 μs, auto adjustments |
| Wave Velocity Range | 100 m/μs to 300 m/μs |
| Adjustable Gain Range | 0 dB to 80 dB |
| Supply Power | AA battery x 6 pcs |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Power Consumption | I W |
| Measurement Distance | O mi to 4.97 mi (0 to 8 km) |
| Resolution Ratio | 0 mi to 0.62 mi (0 km to 1 km), below 3.28 ft (1 m); 1.24 mi (2 km), below 6.56 ft (2 m); 2.48 mi to 4.97 mi (4 km to 8 km), below 26.24 ft (8 m) |
| Blind Zone | 3.28 ft (1 m) |
| Elevation | Less than 2.79 mi (4500 m) |
| Volume | 8.85827 in x 6.10 in x 1.96 in (225 mm × 155 mm × 50 mm) |
| Weight | 0.92 lb (420 g) without battery |
