Overview

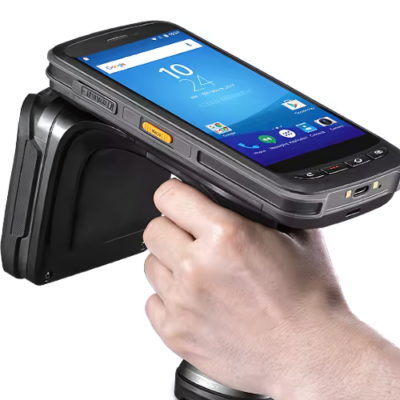

The Inventory Master RFID Reader Handheld Uhf with Barcode Scanner is a high-performance UHF smart handheld terminal that integrates powerful UHF RFID functions. Ultra-high frequency module, data collection is accurate and fast, the reading range is wide, and the reading distance is more than (15 m) in an open outdoor environment. At the same time, it supports the optional barcode function, adopts an eight-core processor, and has multiple functions and complete configurations. In addition, it has a large-capacity battery of up to 8000 mAh, which is perfectly adapted to the needs of high-intensity data collection applications and is widely used in asset management, clothing inventory, vehicle management, high-speed toll collection, warehouse management, financial management, and other fields.
Technical Specifications
| Frequency | 865 MHz to 868 MHz, 902 MHz to 928MHz |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Communication Interface | USB 2.0 Type-C, OTG |
| Display | 5.2 in (13.2 cm) IPS FHD |
| R Or W Range | > 65.6 ft (20 m) |
| Group Read Rate | > 200 tags per sec |
| Antenna | Linear polarization (1.8 dBi) or Circular polarization (4 dBi) |
| Touch Panel | Corning Gorilla glass, multi-touch panel, gloves and wet hands supported |
| Expansion Slot | 1 slot for SIM card or 1 slot for SIM or TF card |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| GPS | Built-in global positioning system, error range ± 16.4 ft (5 m) |
| Sensor | Gravity sensor, light sensor, proximity sensor |
| Accessories | Li-ion battery, charging head, DC charge cable, USB cable |
| Available Crafts | Silkscreen printing (logo), Laser printing (barcode or numbering), QR code, etc |
| CPU | 1.3 GHz Quad-core |
| Memory | RAM 2 GB and ROM 16 GB |
| Expansion | Support up to 32 GB MicroSD (TF) card |
| Bluetooth | Bluetooth 4.0 BLE |
| GNSS | GPS, GLONASS, BeiDou, AGPS, internal antenna |
| Humidity | 5 % RH to 95 % RH, non-condensing |
| Drop Specification | Multiple (1.5 m) 6 ft drops to the concrete across the operating temperature range |
| Tumble Specification | 1000 x (0.5 m) 6 ft falls, still work normally, to satisfy IEC specification |
| ESD | ±8 KV air discharge, ±4 KV conductive discharge |
| Standby Time | > 500 hrs |
| Charging Time | 3 to 4 hrs |
| Working Time | > 12 hrs |
| Working Temperature | -4 °F to 122 °F (-20°C to 50°C) |
| Storage Temperature | -40 °F to 158 °F (-40°C to 70°C) |
| Size | 6.4 in X 3.1 in X 0.9 in (164.2 mm X 80.0 mm X 24.3 mm) |
| Weight | 23 oz (654 g) |
