Overview

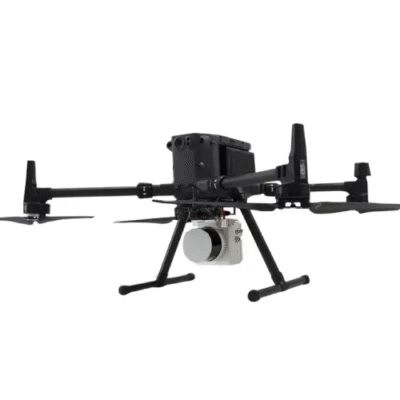

The Inventory Master LiDAR camera sensor is a compact UAV Lidar point cloud acquisition system, integrated with laser scanner, GNSS satellite positioning system, INS inertial navigation system, and 26 MP camera, which can real time, massively collect information with precision point cloud data and rich image.
Features
- Measuring angle of 120
- Position accuracy of <=5 cm
- 1280000 of point/sec double echo
- 360 degree fov
- 26 MP built in camera
Technical Specifications
| Measuring Distance | 393.70 ft , 10% reflectivity |
| Laser Safety Grade | 905 nm Class 1 (IEC 60825 to 1-2014) |
| Laser Line Number | Equivalent to 3 beam |
| Accuracy | ±0.39 in (±1 cm) |
| FOV | 360° |

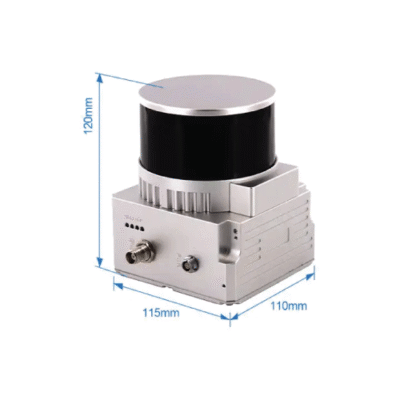

| Laser | HESAI XT |
| Point Cloud | Output point cloud data LAS format, custom TXT |
| Focal Length | 0.63 in (16 mm) |
| Voltage | 12 V to 24 V |
| Consumption | 20 W |
| Working Temperature | -4 °F to 131 °F (-20 °C to 55 °C) |
| Weight | 2.77 lb (1.26 kg) |
