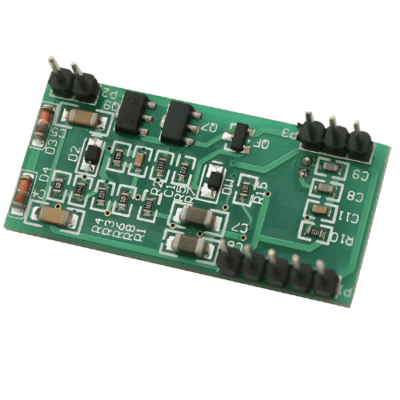

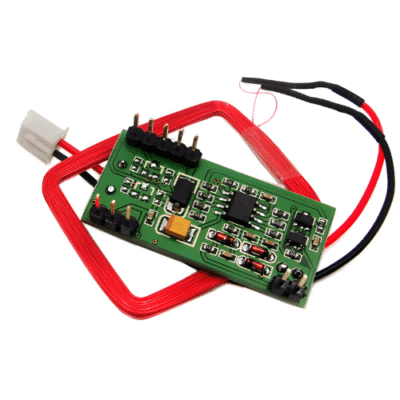

HF RFID Reader RS 232 Module: 13.56 MHz, multi-standard, RS 232/RS 485/TTL, 38.5mm x 19mm x 9mm, >50mm range, stable performance.

SKU: TIMHMOD-213 Category:

Overview

This HF RFID Reader RS 232 Module has working distance >1.97 in, 14 oF to 158 oF operating temperature, and 1.52 in x 0.75 in x 0.35 in dimension.



Technical Specifications

Frequency13.56 MHz
Read-Write ChipMFRC 500, MFRC 400, MFRC 531, MFRC 632
Baud Rate9600 bits per second to 115200 bits per second
Support StandardISO 14443-A, ISO 14443-B, ISO 15693
Sheathing MaterialABS
Power Supply/CurrentDC 5 V or 3.3 V (±5%), < 70 mA
InterfaceRS 232, RS 485, TTL
Working Distance>1.97 in (>50 mm)
Operating Temperature14 oF to 158 oF (-10 oC to 70 oC)
Storage Temperature-4 oF to 176 oF (-20 oC to 80 oC)
Dimension1.52 in x 0.75 in x 0.35 in (38.5 mm x 19 mm x 9mm)
