Features
- High Dynamic Range
- Accurate Fault Location
- FTTH Network Testing
- Fiber Optic Analysis
Technical Specifications
| Use | FTTH |

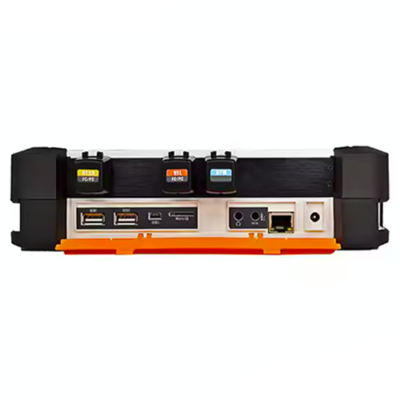

| Product Name | OTDR |
| Network | None |
| LCD | 7 in color LCD, Multi-touch screen |
| Connector | FC/PC (1310/1550nm) interchangeable adapter or customize |
| Pulse Width | 5 ns to 20 µs |
| OPM | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| VFL Function | 10mW |
| Storage | >10000 results (SOR or PDF) |
| Battery | 7.4 V/4.6 AH Rechargeable lithium-ion batteries |
| Event Dead Zone | 3.3 ft (1 m) |
| Attenuation Dead Zone | 16.4 ft (5 m) |
| Min. Distance Resolution | 0.3 ft (0.1 m) |
| Loss Resolution(dB) | 0.001 |
| Distance Uncertainty(ft) | ± (2.6 ft + 0.005% * Testing Distance + Resolution) |
| OPM Function | +26 dBm to –50 dBm, 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, FC or SC adapter |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C), < 90 % RH |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C), < 90 % RH |
| Size (H × W × D) | 9.71 in × 6.83 in × 2.76 in (24.65 cm × 17.35 cm × 7 cm) |
| Weight | About 54.67 oz (1.55 kg) |
