Overview

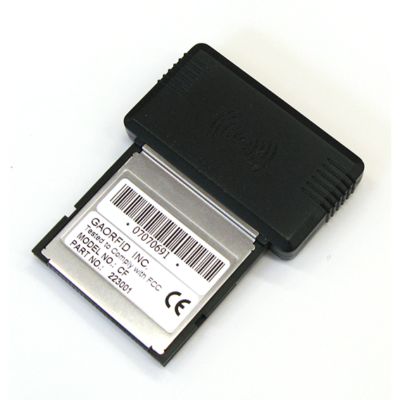

This small compact flash unit is designed to read and write Mifare MF1 tags which can be used for numerous close proximity applications. Some of the more common uses of this CF device are for writing tags that would be used for time and attendance, guard tour patrol, and access control Tags. The readers small form factor and portable nature facilitates the interrogation of RFID tags deployed in numerous locations.
This reader/writer features low power consumption, light weight and a compact size. It has a maximum read distance of 3 cm and has a baud rate of 19200 bps. The RFID reader/writer has a built-in antenna and is power from the device it is inserted into such as a PDA. It conducts omni-directional tag reading.
Technical Specifications
| Power requirements | CF connector from PDA |
| Housing | CF Card Type 1 |
| Baud rate | 19200 bps 8,N,1, no flow control |
| Data structure | STX, DATA, CR, LF |
| Frequency | 13.56 MHz, ASK |
| Power | Less than 5 mA |
| Read distance | 3 cm at maximum |
| Technical certificates | CE, FCC |
| Humidity | 10% to 90% relative |
| Multi-detection | Yes |
| Antenna compatibility | None required |
| Technical certificates | ISO 14443A |
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -20 °C to 65 °C |
| Dimensions | 69.0 mm × 55.0 mm × 9.6 mm with cover |
| Weight | 30 g |
