Overview

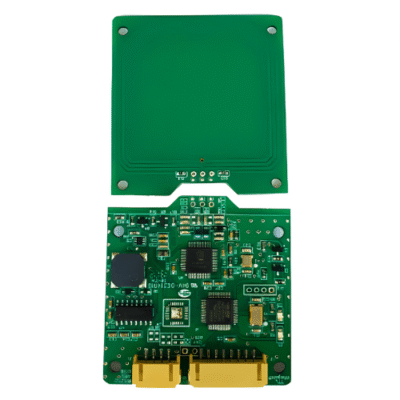

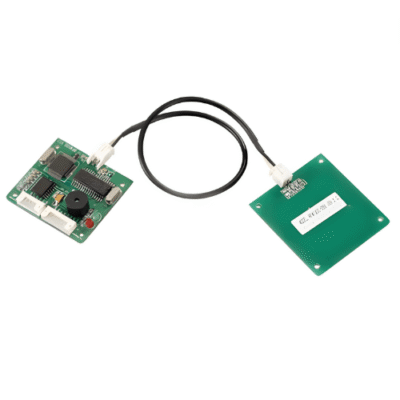

This HF Embedded RFID Smart Card Reader Module has read distance 0 in to 3.15 in, 32 oF to 140 oF operating temperature, and 13.56 MHz frequency.
Features
- High performance embedded type
- Unique card searching function
- Stable and Reliable
- Compact, small, easy to use
- Low power consumption
Technical Specifications
| Protocol | ISO 14443A or B, ISO 15693 |
| Read Distance | 0 in to 3.15 in (0 mm to 80 mm) |
| Interface | RS 232, RS 485, TTL, Wiegand |
| Baud Rate | 9600 bps to 115200 bps |
| Frequency | 13.56 MHz |
| ERPROM | 512 bytes |
| Voltage | 5 V DC (±10%) |
| Current | <150 mA |
| Operating Temperature | 32 oF to 140 oF (0 oC to 60 oC) |
| Storage Temperature | -4 oF to 140 oF (-20 oC to 60 oC) |
| Humidity | 20% to 90% RH |
| Dimension | 3.94 in x 1.97 in x 0.39 in (100 mm x 50 mm x 10 mm) |
