Overview

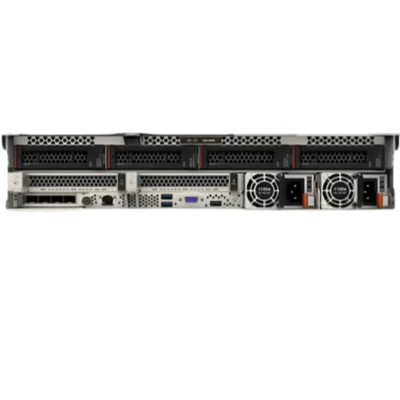

The Inventory Master’s High-Performance 2U Rack Server with Dual Xeon 368TB Storage is equipped with up to 2x 5th Gen Intel Xeon scalable processors, providing exceptional processing power for demanding tasks and applications. This server supports up to 32x TruDDR5 3DS RDIMMs, allowing for seamless expansion and customization to meet the needs of growing businesses and organizations.
High-Performance 2U Rack Server with Dual Xeon 368TB Storage offers support for up to 8x single-width GPUs or 3x double-width GPUs, making it an ideal choice for applications requiring high-performance graphics processing. With HBA RAID support for SATA with SW RAID, this server ensures reliable data storage and protection, making it suitable for virtualization environments and critical applications. The server is available with 750W, 1100W, and 1800W power supply options, allowing users to choose the power configuration that best suits their specific needs and workload requirements.
Technical Specifications
| Form Factor | 2U rack server |
| Processors | Up to 2x 5th gen intel® xeon® scalable processors, Up To 64 cores and 385W TDP |
| Drive Bays | Up to 20x 3.5” or 40x 2.5” drives Up to 36x NVMe drives supported with PCIe retimer Adapters Rear: 2x 2.5”; 7mm SATA/NVMe hot swap boot Drives, support RAID Internal 2x M.2 SATA or NVMe boot drives, support RAID Direct NVMe, VROC or VMD, and onboard SATA with SW RAID (0,1,5,10) |
| Memory | Supports up to 32x TruDDR5 3DS/RDIMMs |
| Expansion Slots | Up to 12x PCIe 4.0 or 5.0 Slots, 1x OCP 3.0 Slot, 1x Cabled internal HBA or RAID adapter that doesn’t Occupy a standard PCIe slot |
| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external Diagnostics handset port (optional) Rear: 3x USB 3.1 G1, 1x VGA, 1x 1GbE RJ-45 (Management), 2nd 1GbE management port (optional in OCP slot location), 1x serial port (optional) |
| HBA/RAID Support | SATA with SW RAID (0,1,5,10); common building Blocks including standard and internal PCIe RAID/HBA adapters |
| Power | Dual redundant AC & DC (multiple wattages); Platinum & titanium; 750W PT/TT, 1100W PT or TT, 1800W PT or TT, 2400W PT, 2600W TT and 1100W to 48V DC PT |
| GPU | Up To 8x single width GPUs or 3x double width GPUs |
| MOQ | 1 |
| Size | 3.4 in (H) x 17.5 in (W) x 30.1 in (D) |
