Overview

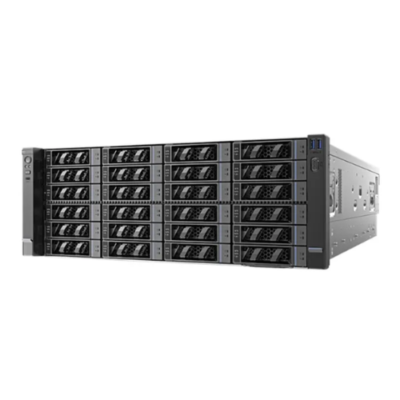

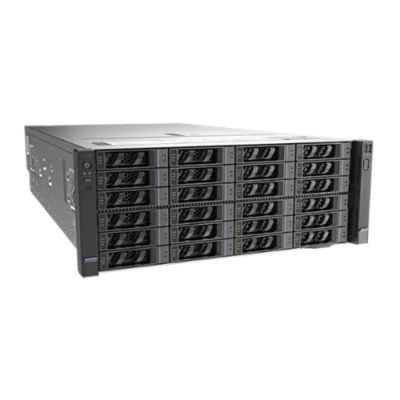

The Inventory Master High-performance 4U rack server with CPUs, 32 DIMM slots equipped with the Intel 5411N 1.9GHz processor, this QIAN iN server offers exceptional processing power and efficiency for demanding applications. Supporting up to 40 x3.5-inch hard disks or 4 x 2.5-inch hard disks, this server provides ample storage capacity for large data centers and businesses. Ensuring minimal downtime, this server features a hot-swappable power supply, allowing for seamless maintenance and upgrades. With support for multiple storage schemes and up to 32 DIMM slots, this server can be easily configured to meet the needs of various applications. Measuring only 4U in height, this server is ideal for data centers and businesses with limited space, offering a compact yet powerful solution.
Technical Specifications
| Processor | Supports two 4th or 5th generation scalable processors, TDP 385W |
| Internal Memory | 32 DDR5 memory slots, up to 5600MHz, supporting multiple protection modes such as memory mirroring, memory hot backup, and memory fault isolation. Supports additional expansion of 16 memory slots through CXL |
| Memory Controller | Supports multiple storage schemes, such as pass-through, RAID0, 1, 10, 5, 50, 6, and 60 When configuring RAID controllers, it supports Cache super capacitor protection, RAID level migration, disk roaming,self-diagnosis, and Web remote setting, and supports secure startup of RAID controller cards. |
| Memory Controller | Front: Supports a maximum of 24 (8.89cm) 3.5-inch hard drives, compatible with NVMe hard drives, and hot swappable Rear: Supports a maximum of 16 (8.89 cm) 3.5-inch hard disks and four (6.35 cm) 2.5-inch hard disks Built-in: Max.2 SATA or PCIe M.2, 1 on-board eMMC chip |
| Network Interface | OCP 3.0 NIC provides the NCSI function and can be configured with 2 x 1GE, 2 x 10GE, 2 x 25GE, 2 x 100GE, 2 x 200GE ports |
| PCI Extension | Supports a maximum of 10 PCIe 5.0 expansion slots, including one OCP slot |
| Other Interface
| Rear of the chassis: 1 RJ45 management interface, 2 USB 3.0 interfaces, 1 VGA interface Front of the chassis: 2 USB 3.0+VGA Internal chassis: 1 USB 3.0 interface |
| Power Supply | Optional 800w or 1300W or 2000W or 2200W CRPS high-efficiency Platinum hot-swappable power supply, supports 1+1 redundancy, voltage ranges 100 to 240Vac (Please refer to the power input value on the nameplate label) |
| Fan Module | Four hot-swappable fan modules in N+1 redundancy |
| Management Function and Operating System | Integrated BMC chip, provides a 1Gbps RJ45 management port, supports standard interfaces such as Redfish, SNMP, IPMI 2.0, and iKVM or HTML5 remote management interface, provides comprehensive fault diagnosis, automatic operation and maintenance, remote management, and supports dual flash backup for the BMC Microsoft Windows Server, RedHat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu VMware EXSi, Kylin, Red flag, etc. |
| Operating Temperature | 41°F to 113°F (5 ℃ to 45 ℃) |
| Case size (H x W x D) | 6.91 in x 17.56 in x 31.42 in (175.5mm × 446mm ×798mm) |
| Net Weight of Whole Machine | 127.87lbs (58KG) (based on actual configuration) |
