Overview

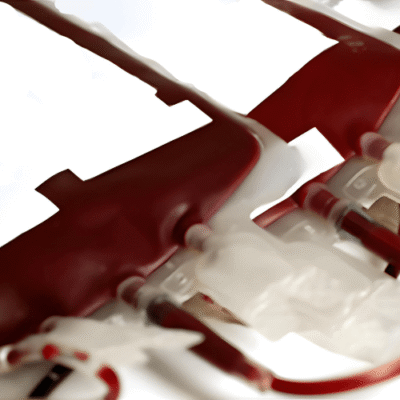

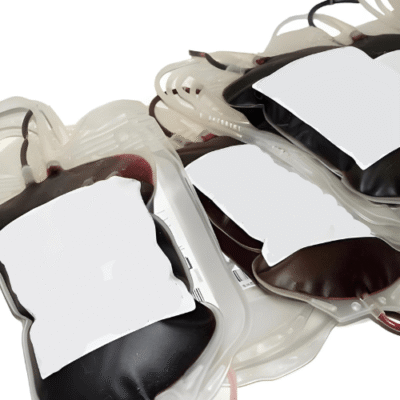

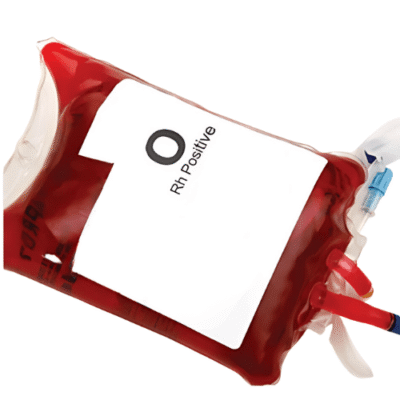

The Inventory Master Medical Anti-Liquid RFID Tag using coupling instead of AL etching antenna. It is an ideal solution for RFID application in various blood bag and liquid applications. The coupled antenna design allows performance to be affixed to the blood bag to read up to 13.1 ft (4 m). Meanwhile, the design of the omnidirectional 3D antenna can facilitate reading from all angles and improve reading efficiency and accuracy. UHF Blood Bag tag is a passive UHF 860 MHz to 960 MHz tag and fully compliant with ISO 18000-63, adopts the large-capacity chip MONZA 4E and MONZA 4QT, with large EPC memory, which is convenient to store the hospital’s information and improve safety.
Technical Specifications
| Material | Paper or PET |
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Class1 Gen2; ISO18000-6c |
| Chip | UHF chips M4e, M4d, M4qt, U8, U9, M730, M750 etc. |
| Antenna | Aluminum Antenna |
| Operating Mode | Passive |
| IC Life | 100,000 Programming Cycles, 10 Years Data Retentio |
| ESD Voltage Immunity | Max.2000 V Human being mode (HBM) |
| Available Formats | Dry inlay, Wet inlay, Paper tag, Plastic Tag |
| Dimension | 3.43 in x 2.09 in (87 mm x 53 mm) or customized |
