Overview

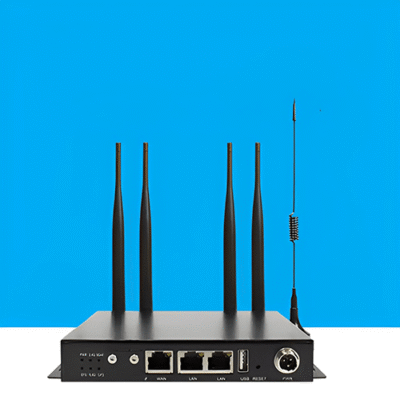

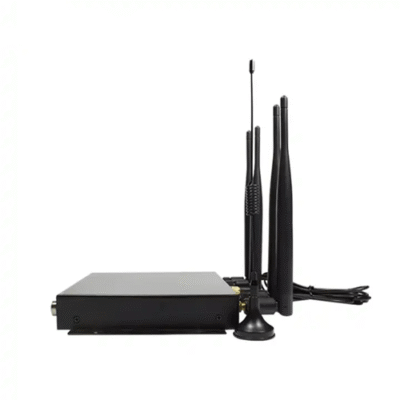

The Inventory Master’s High-Performance Dual Band Cellular Modem with 4G LTE and GPS is a robust vehicle Wi-Fi router designed for fast and stable connectivity. Supporting dual-band Wi-Fi at 2.4 GHz and 5 GHz, it allows connections for up to 64+ users, making it ideal for vehicles requiring reliable internet access. This device integrates 4G LTE technology, supporting multiple regional bands to function as a wireless gateway. Engineered for vehicle applications, it accepts 12 V and 24 V power inputs, features surge protection, and includes a 15-second power-up delay to safeguard against power fluctuations, ensuring durability and consistent performance in demanding environments.
Features
- Stable Performance
- 4G LTE
- More Wi-Fi Connections
- Dual Band Wi-Fi
- SIM or USIM
- TF Storage
- GPS
- SSD (custom version)
- Vehicle Power Input
- Surge Protection
- 15 sec Power Up Delay
- Industrial Grade Components
- Open-Source Open WRT
- Open For Development
- Cloud Management (custom firmware.
- OEM Hardware
Technical Specifications
| CPU | MT7 620 A and 7612 E SoC |
| System Memory | 128 MB DDR2 RAM |
| Flash | 16 MB SPI Flash |
| Wireless | 2.4 GHz 802.11 n, 300 Mbps, 5 GHz 802.11 ac 867 Mbps |
| 4G | Support 4G LTE FDD-LTE, FDD-TDD |
| Ethernet | 3 x 10 Mbps, 100 Mbps Fast Ethernet Port, Auto MDI, X |
| SIM | 1 x SIM, USIM Card Slot |
| TF | 1 x TF Card Slot, support max. 64 GB TF Card |
| USB | 1 x USB 2.0 Host Port |
| SSD (custom) | Support Solid-State-Disk Mini PCIe SATA3 module |
| Power | 12 V to 24 V DC Power Input, Width Range 9 V to 36 V, Aviation Plug Type |
| Operating Temperature | -4 ℉ to -158 ℉ (-20 °C to 70 °C) |
| Product Dimensions | 6.85 in x 5.71 in x 0.98 in (174 mm x 145 mm x 25 mm) (Exclude Antenna and Accessories) |
