Technical Specifications
| Material | High-quality all-aluminum alloy |
| Processor | Intel Core i3-1215U (6 cores, 8 threads, turbo frequency up to 4.4 GHz) Intel Core i7-1265U (10 cores, 12 threads, turbo frequency up to 4.8 GHz) Intel Core i5-1245U (10 cores, 12 threads, turbo frequency up to 4.4 GHz) |
| BIOS | AMI EFI BIOS |
| RAM | 2 DDR4 3200 MHz SODIMM RAM slots, Max 64 GB |
| Storage | 1 M.2 2280 slot, 1 2.5-inch SSD/HDD |
| Display Chip | Intel Iris Xe Graphics |
| Display Interface | 1 DP, 1 HD (Supports synchronous & asynchronous dual display, DP resolution up to 4096×2160@60Hz) |

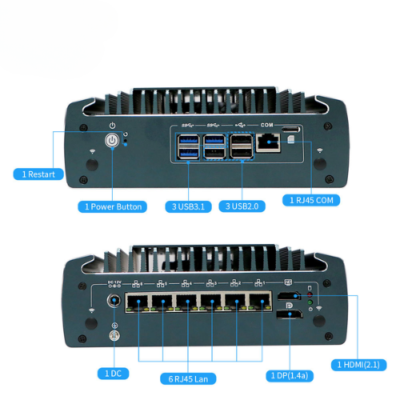

| Front I/O | 1 Power Button, 1 Restart, 3 USB3.1, 3 USB2.0, 1 RJ45 COM (support Console function) |
| Rear I/O | 1 DC, 6 RJ45 LAN, 1 DP (1.4a), 1 HD (2.1) |
| Network Card | 6 Intel i225-V 2.5G Ethernet, Lan 1-4 optional 802.3af standard POE function |
| Expansion | 1 M.2 2280 M-key slot (only supports NVME protocol) 1 M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot 1 M.2 2230 E-key slot (supports WIFI, BT) |
| Other Functions | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0 to 255 level) |
| Power Supply | DC 12V |
| Application | Firewall, VPN, Network server, Network security, Router etc. |
| Certificates | CE, CCC, FCC Class A, ROHS |
| Operating Humidity | 0% to 95% non-condensing |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) (Commercial HDD), -4°F to 122°F (-20°C to +50°C) (Industrial SSD) |
| Dimensions | 7.32 in × 4.99 in × 2.60 in (186 mm x 126.5 mm x 66 mm) |
| Weight | 2.87 lb (1.3 kg) (Net Weight, excluding wall bracket) |
