Overview

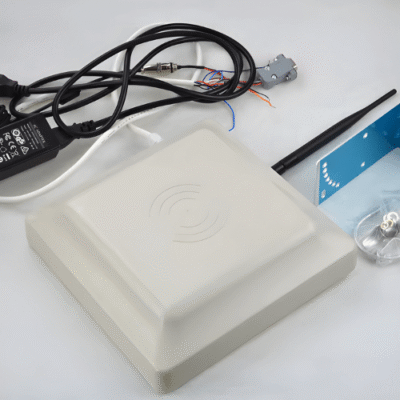

The Inventory Master Long Range UHF RFID Reader WIFI Original Wireless UHF Reader belongs to ISO18000-6C & EPC Class 1 Gen2 protocol which can read and write all UHF RFID EPC tags in a wireless connection. With built-in RFID antenna and ABS material, it can be installed outdoor for many RFID systems.
Technical Specifications
| Frequency | Worldwide 840 MHz to 960 MHz, US 902 MHz to 928 MHz, EU 865 MHz to 868 MHz |
| Protocol | ISO or IEC 18000-6C and 6B, EPC Class1 Gen2 |
| Read & Write Range | Read 3.2 ft to 19.6 ft (1 m to 6 m) adjustable, tag and environment dependent |
| Antenna | Built-in 8 dBi Circular polarization antenna |
| Transmit Power | 0 dBm to 30 dBm adjustable |
| Working Mode | Read & write supported |
| Read Prompt | Buzzer |
| Anti-Collision | Support multiple tags reading |
| Reading Speed | Max. 100 tags per s |
| Software Kits | Provide free Demo for testing and SDK for development |
| Software Compatibility | Win XP, Win7, Win8 or Win10 |
| Customized Service | Ethernet or WIFI port; Cable meters; Relay; External Antenna; Module; Led indicator; Circular Antenna; |
| Material | ABS Waterproof |
| Mounting | Bracket |
| Data Interface | WIFI, RS 232 or UART |
| Power Supply | Single +9 V to 12 V DC |
| Operating Humidity | 20 % to 90 % RH |
| Operating Temperature | 14°F to 140°F (-10 ℃ to +60 ℃) |
| Size | 9.25 in × 9.25 in ×2.24 in (235 mm x 235 mm x 57 mm) or 10.24 in × 10.24 in × 1.77 in (260 mm x 260 mm x 45 mm) |
