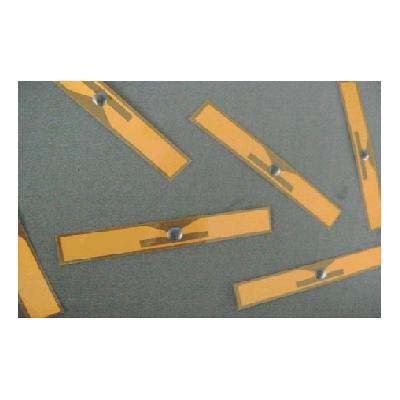

Key Features
- Passive RFID tag
- UHF EPC Class 1 Gen 2
- Alien Higgs 3
- Read up to 5.0 meter on dry fabric
Technical Specifications
| Silicon chip | Alien Higgs3 | ||
| Chip memory | EPC 96 bits (extensible to 512 bits) | User 512 bits | TID 64 bits | CRC 32 bits | ||
| Material | Double layer laminated polyimide film (also known as KAPTON film) | ||
| Antenna | Gold plated etched copper | ||
| Chip attachment | Aluminum wire bonding with epoxy glob top on both sides | ||
| RoHS | 100% compliant | ||
| Warranty | 100 cycles | ||
| Applied fields | Laundry, Plastic pallets, boxes and trays | ||
| Applied countries | US, France, UK, Italy, Spain, Japan, Australia, Korea, etc. | ||
| # tags applied | 400,000 | ||
| Read range | Fixed reader | Handheld reader | |
| In dry fabric | 5.0 | 3.0 | |
| In wet fabric | 1.0 | 0.5 | |
| Temperature | Operating: -40 °C to 85 °C | Storage: -55 °C to 200 °C | Peak: 200 °C 6 hrs | ||
| Dimensions (W × H × T) | 68 mm × 9 mm × 0.4 mm | ||
| IP Classification | IP68 (tested for 24 h in 1 meter depth) | ||
| Humidity | 85 °C/85 % RH (tested for 168 h) | ||
| Boiling water | Tested in boiling water for 24 h | ||
| Pressure | 40 BAR | ||
| Vibration | IEC60068-2-6/64 | ||
| Chemicals | Salt water (salinity 10%, 24 h) | NaOH (10%, pH13, 24 h) | Sulfuric acid (10%, pH2, 24 h) | Motor oil (24 h) | Methanol (24 h) | Ethanol (24 h) | ||
