Overview

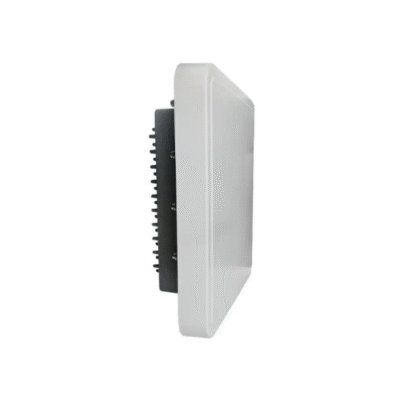

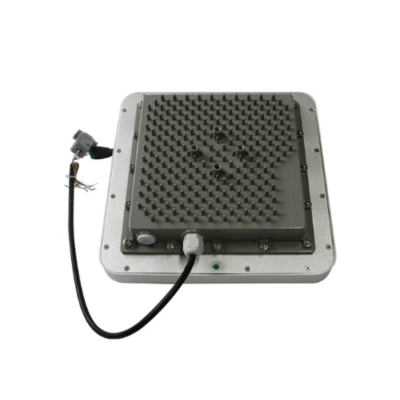

The Inventory Master High Performance UHF RFID Integrated Reader is designed based on entirely proprietary intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operations with high identification rate. It can be widely applied in many RFID application systems, such as logistics, access control, industrial production process control systems and anti-counterfeiting.
Features
- Self-intellectual property
- Support ISO18000-6C (EPC C1G2) protocol tag
- 865 MHz to 868 MHz, 902 MHz to 928 MHz frequency band
- FHSS or Fix Frequency transmission
- RF output power up to 26 dBm (adjustable)
- 9 dBi circular antenna with effect distance
- Support active mode, answer mode
- Trigger-activating and password work mode
- Low power dissipation with single +12 V DC power supply
- Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE
- One Relay (Optional) can control Beep, Motor, Light
- Support Modbus (only RS232, RS485, RJ45 interface)
Technical Specifications
| Physical Parameters | |
| Shell Material | ABS |
| Color | Gray White |
| Performance | |
| Frequency | 902 MHz to 928 MHz, 860 MHz to 868 MHz (frequency customization optional) |
| Ant. | 9 dBi circular polarization antenna (9 dBi linear antenna optional) |
| Read Distance * | 0 ft to 49.21 ft (0 m to 15 m) * Effective distance depends on antenna, tag and environment. |
| Write Distance * | 0 ft to 22.96 ft (0 m to 7 m) * Effective distance depends on antenna, tag and environment. |
| Read Rate | 400 cnt per s |
| Read Type | ISO18000-6C (EPC Gen2) |
| Reading Prompt | Buzzer |
| Working Voltage | DC +9 V to 24 V, 12 W |
| Work Mode | Active mode, Answer mode, Trigger mod, Password mode |
| Communication | RS232, RS485, WG26, WG34, Trigger,Relay (Optional), RJ45 (Optional),WIFI (Optional), POE (Optional), USB (Optional) |
| Environmental Parameters | |
| Operation Temperature | -4 °F to 140 °F (-20 °C to 60 ℃) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity | 5 % to 95 % RH, Non-condensing |
| Waterproof Rank | IP65 |
| Dimensions | 10.23 in x 10.23 in x 3.07 in (260 mm x 260 mm x 78 mm) |
| Net Weight | 8.81 lb (4.0 Kg) |
| Gross Weight | 9.92 lb (4.5 Kg) |
