Overview

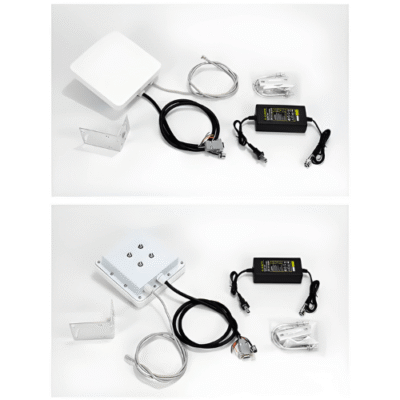

The Inventory Master UHF Tag Reader TCP IP WIFI RFID Tag Reader with Linux Support is a high-end mid-long-range integrated UHF RFID reader product; its design carries the company’s research and development of ultra-high frequency. Also, with a read-write module and 7dBi circular polarization antenna, the main control chip uses a new generation of high-performance ARM-COTEXM3 processor, with multi-device communication, watchdog, heartbeat packet and real-time monitoring equipment status information. Function, and integrated with RS232. Relay and 100 Mega Ethernet communication interface, its read distance can reach more than 19.69 ft (6 m), for the same product read distance, the most stable performance of ultra-high frequency reader products.
Technical Specifications
| Frequency | EU:865 MHz to 868 MHz; US: 902 MHz to 928 MHz, Whole: 860 MHz to 960 MHz |
| Protocol | EPCglobal UHF Class 1 Gen 2 or ISO 18000-6C |
| Voltage | DC +12 V |
| Output | 0 DBM to 33 DBM (Adjustable) |
| Output Power Flatness | ±0.2 dBm |
| Receiving Sensitivity | -60 dBm |
| RF Port Standing Wave | ≤1.5 |
| Read Distance | 3.28 ft to 19.69 ft (1 m to 6 m) (related to tag type, transmit power and application environment) |
| Multi Label Read | ≥200 tags per s |
| Interface Communication Rate | 115200 bps |
| Working Temperature Detection | Support |
| Dense Reader Mode DRM | Support |
| Ntenna Connection Protection | Support |

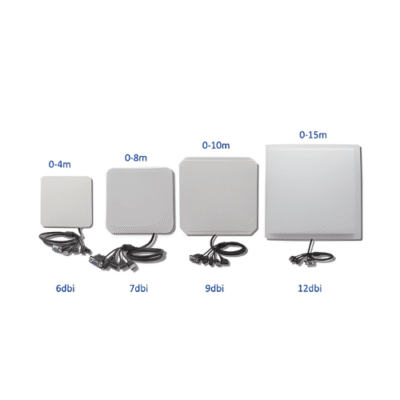

| Antenna Type | 6dBi circularly polarized antenna |
| Communication Interface | RS 232, Relay |
| Buzzer | Yes |
| Outline Dimension | 7.48 in x 7.48 in x 1.18 in (190 mm x 190 mm x 30 mm) |
