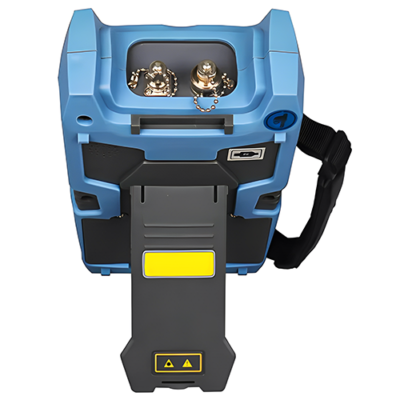

Features
- High-Precision Testing
- Fast and Efficient Tests
- Compact and Durable Design
- Long Battery Life
Technical Specifications
| Distance | 16.4 ft to 656168 ft (5 m to 200 km) |
| Pulse Width | 5 ns to 20 μs |
| Measurement Time | User Defined |
| Distance Accuracy | ± (1.64 ft + 0.0001% × Distance + Sampling Resolution) |
| Attenuation Accuracy | 0.005 dB |
| Loss Threshold | 0.001 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.098 ft (0.03 m) |
| Sampling Quantity | 128,000 |
| Linearity | 0.05 dB/dB (AE2300), 0.03 dB/dB (AE2300H) |
| Data Storage | 3000 pcs |
| VFL | 10 mW (AE2300 Option), (AE2300H Standard) |
| LCD | 4.3 in, 16:9, 480×272 Dot-Matrix TFT Touch Screen |
| Fiber Adapter | FC/PC, SC/PC |
| Interface | USB (Principal and subordinate each), RJ45 |
| Power | AC/DC Adapter (Input AC 100V to 240V ±10%, Output 12V) |
| Dynamic Range | 24/26/28 dB |
| User-Friendliness | One-button Testing |
| Use | Visual Fault Locator |
| Packing | Exporting Carton |
| Delivery | Around 7 days |
| OEM ODM | Acceptable |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimension | 9.45 in × 5.31 in × 2.75 in (24 cm × 13.5 cm × 7 cm) |
| Weight | <2.2 lb. (1 kg) |
