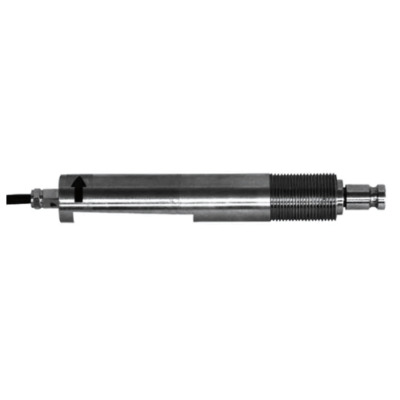

High Precision Tension Sensor with Customizable Output Process – The Inventory Master

Discover high precision tension sensors with 10 to 500N range, customizable outputs, and durable steel design for chemical and medical applications.

Technical Specifications

Mounting Type	Bolt installation
Theory	Resistance sensor
Output	mV, 0 to 5 V, 4 to 20 mA, RS485, etc..
Sensitivity	1.5 mV per V
Comprehensive Error	±1 % F.S
Excitation Voltage	9 to 12 VDC
Safety Overload Range	120 % F.S
Material	Alloy
Creep	≤± 0.5 % F.S per 30 min
Operating Temperature Range	-4 °F to 140 °F.
Temp Effect on Zero	≤± 0.03 % FS per 18 °F
