Overview

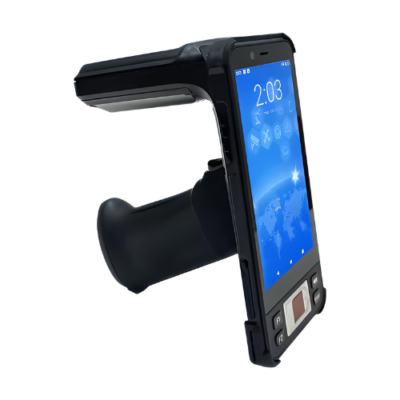

The Inventory Master Android Long Range Handheld UHF RFID Reader is an android rugged mobile computer. It features powerful processor, Octa-core 2.0 GHz or 2.2 Ghz, 7600 mAh battery, Optional 4G or 5G and superb UHF RFID capability. It supports 1D and 2D barcodes reader. It also supports group reading design (speed: > 900 tags per sec) from long distance so that it to be deployed in asset management, retail, inventory warehousing, logistic management, running race timing system. It makes an excellent choice for industrial businesses that require extended usage times. With the battery capacity, the device can last for 2.5 hours without needing to be recharged and normal standby for 7 days, ensuring uninterrupted operations. And it supports PE speed charge within 4 hours. Resolution 28.3 in X 50.3 in (720 mm X 1280 mm), 5-point capacitive touch which is safe and powerful.
Technical Specifications
| Frequency | Standard (920 MHz to 925 MHz), America (902 MHz to 928 MHz), European (865 MHz to 868 MHz) |
| Protocol | ISO 18000-6C |
| UHF Engine | E710 or R2000 |
| Reading Rate | 900 tags per second |
| Supported Protocol (NFC) | ISO14443 A or B, ISO15693 |
| Reading Distance | 0 in to 1.9 in (0 mm to 50 mm) |
| Operating System | Android 11 |
| Fastest Read Rate | 900+ tags per sec (circular polarization) |
| NFC | Available |
| Antenna | 4 dBi four-arm spiral |
| RF | 5 dBm to 30 dBm r54(1W) optional 33 dBm (2 W), adjustable 1 dbm |
| Screen | 5 in (12.7 cm) |
| CPU | Octa-core 2.0 GHz or 2.2 GHz |
| Storage | 4 GB + 64 GB |
| BT | BT 5.0 BLE or BT 5.1 BLE |
| IP Class | IP 65 |
| Fingerprint | Capacitive |
| Battery Capacity | 7600 mAh |
| GPS | GPS + BD + GLONASS |
| Communication 4G | FDD-LTE B1 or B2 or B3 or B4 or B5 or B7 or B8 TDD-LTE B34 or B38 or B39 or B40 or B41 WCDMA B1 or B2 or B4 or B5 or B8 GSM B2 or B3 or B5 or B8 CDMA or EVDO BC0 or BC1 |
| Communication 5G | FDD-LTE B1 or B2 or B3 or B5 or B7 or B8 or B28A TDD-LTE B34 or B38 or B39 or B40 or B41 WCDMA B1 or B2 or B5 or B8 GSM B2 or B3 or B5 or B8 CDMA or EVDO BC0 or BC1 NRN1 or N3 or N28A or N41 or N77 or N78 or N79 |
| Barcode Scanning | NLS-CM60 EAN 13, EAN 8, UPCA, UPCE Code 128, Code 39, Codabar, UCC or EAN 128 RSS,ITF, ITF 14, ITF 6, ISSN, ISBN, Standard 25 Matrix 25, Industrial 25, Plessey, MSI Plessey Code 11, Code 93, PDF417, QR Code DataMatrix, AZTEC, Hanxin Code, Maxicode Micro QR, Micro PDF 417, Composite |
| Dimensions | 6.6 in X 3.1 X 0.5 in (167.8 mm X 80.7 mm X 13.3 mm) |
