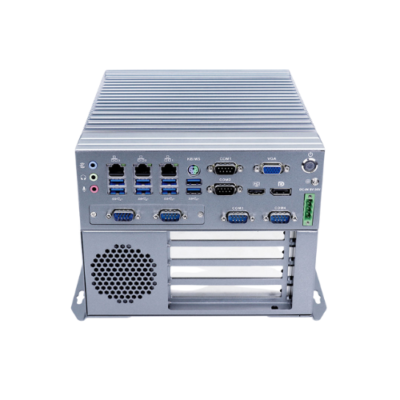

| Device Type | Industrial Embedded Computer / Edge Computing Device |
| CPU Options | Intel Core i3 6100T (2C/4T, 3.2 GHz), Intel Core i5 6500T (2C/4T, 2.5–3.1 GHz) |
| Memory | 2 × DDR4 SODIMM slots, 1866/2133 MHz, max 32 GB |
| Storage | 1 × mSATA, 2 × 2.5″ HDD/SSD, supports RAID 0/1 |
| BIOS | AMI EFI BIOS |
| Display | Integrated Intel HD Graphics 530; 1 × VGA, 1 × HDMI, 1 × DP |
| I/O Ports | 8 × USB3.0, 2 × 1 Gb LAN, 1 × VGA, 1 × HDMI, 1 × DP, 1 × Mic, 1 × Audio, 6 × COM (RS232/422/485) |
| Expansion Slots | 2 × Mini PCIe (support mSATA, WiFi/3G/4G), embedded SIM slot; Optional: 16-pin GPIO, 4 × USB2.0 |
| Network | 2 × Intel i211-AT 1 GbE LAN, 1 × Intel i219-LM 1 GbE LAN, Vpro supported |
| Other Functions | Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog (0–255) |
| Power Supply | DC 9–36V wide voltage, supports reverse polarity protection |
| Work Temperature | 0 °C – 50 °C (Commercial HDD), -20 °C – 60 °C (Industrial SSD) |
| Work Humidity | 0% – 95% non-condensing |
| Applications | Industrial automation, medical, data acquisition, motion control, vehicle applications |
| Dimensions (L × W × H) | 210 × 240 × 83.5 mm ≈ 8.27 × 9.45 × 3.29 in |
| Net Weight | 4 kg ≈ 8.8 lb |
