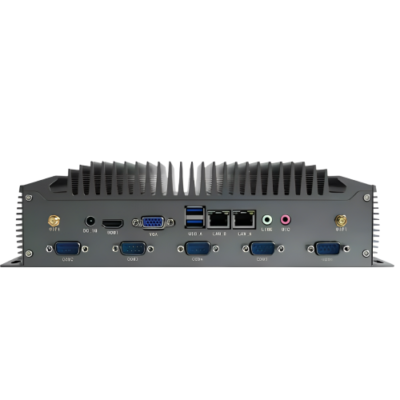

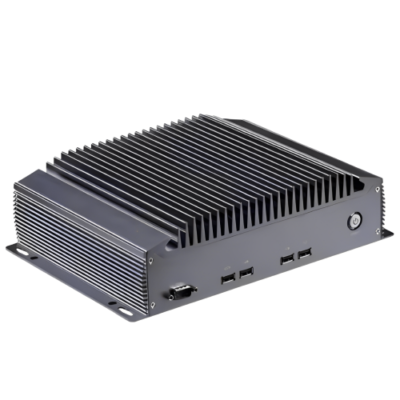

Technical Specifications
| Operating System | Windows 7, Windows 8, Windows 10, Windows 11, Linux, etc. |
| CPU Processor | Sky Lake, Kaby Lake, Kaby Lake R, Tiger Lake i3, i5 |
| Chipset | Sky Lake, Kaby Lake High Speed Chipset |
| Memory Support | 2 x NB-DDR3 or DDR4 Memory Slot |
| Power Supply | 1 x DC_IN 12V or 19V voltage, DC head inside diameter 0.09 in (2.5 mm), Power consumption: About 30W or 60W, with 12V 7A power supply |
| Display Function | 6th Gen Integrated HD510 or 520 Graphics Controller, support single display, double display copy, double display extension, DOS single display, 7th or 8th Gen Integrated HD610 or 620 Graphics Controller, supporting single display, dual display replication, dual display expansion, DOS single display, 11th Gen Integrated Sharp Torch X 11 Core Graphics, support single show, double or three or four copy, double or three or four extension DOS order, 1 x VGA DB15 interface, the highest resolution is 1920 x 1200 at 60 Hz, 1 x HDMI 1.4 interface, supports 4K resolution 4096 x 2160 at 30 Hz |
| Network Function | 1 x LAN (Default) Realtek 8111H Gigabit Nic Chip, supports network Wake Up and PXE Diskless startup, 1 x LAN_B (Optional) I219-LM Gigabit network adapter chip, supports network Wake Up and PXE Diskless boot, 1 x MINI PCIE interface, supports WIFI or 3G or 4G |
| Hard Disk Function | 1 x SATA 1.0 interface: Standard SATA 3.0 hard disk interface, maximum transmission speed 6.0 GBPS, 1 x SATA 2.0 interface: Standard SATA 3.0 hard disk interface, maximum transmission speed 6.0 GBPS, 1 x MSATA interface: Supports MSATA disks and MSATA 3.0, 1 x M.2 interface: M.2 2280 is supported by default, 2242 is optional, default SATA protocol |
| Sound Function | Realtek ALC662 HD Audio, 6 voice controller, 1 x LINE OUT interface: Audio output support (GREEN), 1 x MIC_IN interface: Support microphone input (RED) |
| USB Function | 2 x USB 3.0 interface: Standard USB 3.0 interface, 4 x USB 2.0 interface: Standard USB 2.0 interface |
| Switching Function | 1 x power switch, switch button, 1 x Auto SWPin insertion, hardware controls the power-on and power-on pins |
| Other I or O | COM1 or COM2 interface: Serial port RS232 by default, RS422 or RS485 is optional, COM3 to COM6 interface: Serial port supports standard RS232, 1 x SIM Card: Support SIM card, 3G or 4G need SIM Card slot |
| BIOS | AMI BIOS supports power-on, timed power-on, and intelligent identification of remote power-on and power-off devices |
| Watch Dog | Watch Dog programming, support hardware reset function (256 level, 0 to 255 seconds) |
| Humidity | 5%RH to 95%RH, non-condensing |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Size (L x W x H) | 11.26 in x 8.07 in x 3.00 in (286 mm x 205 mm x 76.3 mm) |
