Overview

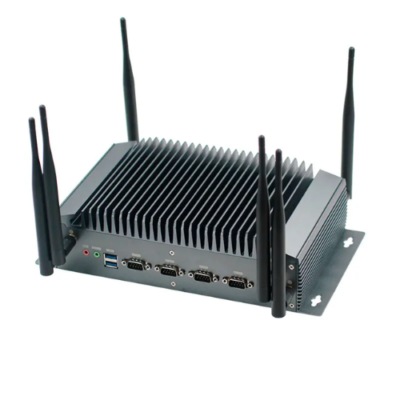

The Inventory Master’s Industrial Mini PC with Intel 12th Gen i9 – The Inventory Master is equipped with the 12th Gen Intel Core i9 processor, providing exceptional processing power and efficiency for demanding applications. The device features 6x COM ports, 3x 2.5G LAN ports, and 7x USB ports, ensuring seamless connectivity and data transfer for a variety of industrial and commercial use cases. With an M.2 SSD and SATA 3.0 interface, users have the flexibility to choose their preferred storage configuration, whether it’s a high-capacity SSD or a traditional hard drive. This mini PC is designed for space-constrained environments, while its fanless design ensures reliable operation in harsh conditions. The device comes with a range of plug types, including US, CN, AU, UK, and EU, making it suitable for international use and deployment in various industrial settings.
Technical Specifications
| Processor System | Onboard intel 12th alder lake-P serial processor EFI BIOS |
| Ram | 1xDDR4 3200MHz SO-DIMM slot,max 32GB; onboard DDR4, max 16GB |
| TPM2.0 | CPU built-in TPM2.0, optional external PM2.0 |
| Connector Extension | 2x standard phoenix mountain extension connectors 1x eDP,4096×2304, 60Hz |
| I/O Interface | 1xDC, 1xVGA, 1xH-DMI, 3xLAN, 2xUSB3.1, 4xUSB2.0, 4xCOM, 1xLine out, 1xMic in, 1xswitch button with light |
| Extended Interface/Function | 2xIntel i211 or i210 network card,1*i219-LM gigabit network card Copper fan radiator (Support automatic and manual fan speed regulation) 2xUSB3.1,5xUSB2.0 COM1 is 2pin RS232, COM2/3(DB9 port) is RS232 or RS485; COM4/5/6/7 is RS232(COM4/5 is DB9 port, COM6/7 is row stitch) 4 pin GPIO 1xM.2 E-Key, support WIFI module 1xM.2 B-Key, support 4G and 5G module 1M.2 2280 M-Key,PCIe x 4 NVMe protocol One 2.5-inch SATA disk port 1xmSATA interface |
| Power Supply | DC 9 V to 36 V, over 90 W |
| Operating System | Win10, win11, linux |
| Working Temperature | -4°F to 140°F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40°F to 185°F (-40 ℃ to +85 ℃) |
| Working Humidity | 0% to 90% |
| Storage Humidity | 0% to 90% |
| Product Size | 11.81 in x 6.14 in x 3.07 in (300 mm x 156 mm x 78 mm) |
Reviews
There are no reviews yet.
