Overview

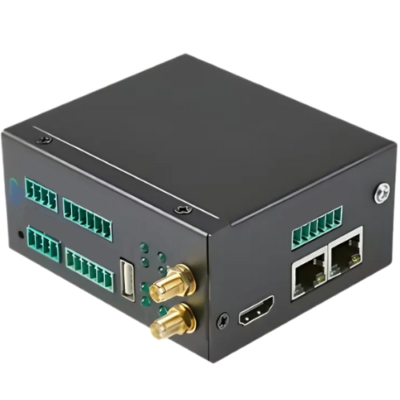

The Inventory Master Industrial Small Embedded Computer use NXPI.MX6 ULL processor, with advanced ARM Cortex-A7 architecture, running speed upto 800MHz. This device comes with 4 RS485 or RS232, 1 CAN port, 2 Ethernet ports, 2DI,2PWM output and 1USB port, 1power input or output port, 1 HDMI, and1Mini PCIe expansion slot for a wireless module. The Inventory Master Industrial Small Embedded Computer supports LINUX, Ubuntu, Debian and other OS; Node-Red, QT, Python,C++; MySQL, SQLite and other databases. This tiny, embedded computer is widely applicable to a variety of industrial solutions.
Features
- NXPI.MX6ULL processor, ARM Cortex-A7 architecture
- Dual 10 or 100 Mbps Ethernet ports
- RS485 or RS232 serial ports
- Expansion for 4G or 5G or WIFI module
- Supports LINUX, Ubuntu, Debian
- Supports Node-Red, QT, Python, C++
- Supports MySQL, SQLite
- Automatic frequency reduction or restart when overheated
- Chip frequency can be adjusted manually
- Multiple sleep modes, with timing wake-up function
- IP30 protection
- Metal shell and system are safely isolated
- DIN rail installation
Technical Specifications
| Processor | i.MX6ULL800MHz |
| RAM | 256or512MB |
| Flash | 256MBor8GeMMC |
| Input Voltage | DC9Vto 36V |
| Power Consumption | Normal:170mAat12V, max340mA at 12V |
| Wiring | Anti-Inverse Connection Protection |
| Ethernet Port | Interface Spec: 2xRJ45,10 or 100 Mbps, adaptive MDI or MDIX Protection: ESD±16kV (contact), ±18kV (air) EFT40A (5 or 50ns) Lightning 6A (8or20µs) |
| Serial Port | 4xRS485orRS232 BaudRate:300bpsto115200bpsData Bit:7, 8 Parity Bit: None, Even, Odd Stop Bit: 1, 2 Protection: ESD±8kV (contact), ±15kV (air) EFT2KV, 40A (5or50ns) |
| CAN Port | QTY:1 Max Speed: 1Mbps |
| SIM Card | QTY:2SIMCardSlot Spec: Drawer type slot, support1.8V or 3 VSIM or UIM card (NANO) Protection: Built-in15KVESDProtection |
| Digital Input | Input Type: Both Dry contact and Wet contact (NPN) Dry Contact: Close = Short circuit Open=Open circuit Wet Contact: Logic0=0to3VDC Logic1=3to30VDC Isolationprotection:2KVrms |
| Digital Output | Output Type: PWM |
| USB Port | 1xmicro-USB, 1xUSB2.0 |
| SD Card Slot | Spec: Supports SD, SDH Cand SDXC (UHS-I) cards |
| HDMI | Available |
| Antenna | 1 xCellularantenna,1xWIFIAntenna Type: SMA Hole Type |
| 5G Module (Optional) | Interface: PCIe 5GNR: n1orn28orn41orn77orn78orn79LTE-FDD: B1orB3orB5orB8 LTE-TDD: B34orB38orB39orB40orB41 WCDMA: B1orB5orB8 |
| WIFI (Optional) | Interface: PCIe Protocol: IEEE802.11 borgorn Mode: STA, AP Frequency: 2.4 GHz Channel: Ch1toCh13 Security: Open, WPA, WPA2 Encryption: AES, TKIP, TKIPAES Connection: 8 (Max) SpeedRate:150Mbps (Max) Transmission Distance: Outdoor or Open area, upto65.62ft(20m) SSID: Support |
| Indicator | 8x LED |
| Safety Certification (MTBF) | >=100,000hours |
| 4G Module (Optional) | L-Eversion: GSM or EDGE=900,1800MHzWCDMA= B1, B5, B8 FDD-LTE=B1, B3, B5, B7, B8, B20TDD-LTE=B38, B40, B41 L-CEversion: GSM or EDGE=900,1800MHzWCDMA= B1, B8 TD-SCDMA=B34, B39FDD-LTE=B1, B3, B8 TDD-LTE=B38, B39, B40, B41 L-Aversion: WCDMA = B2, B4, B5FDD-LTE=B2, B4, B12 L-AUversion: GSM or EDGE=850,900,1800MHzWCDMA= B1, B2, B5, B8 FDD-LTE=B1, B3, B4, B5, B7, B8, B28TDD-LTE= B40 L-AFversion: WCDMA=B2, B4, B5 FDD-LTE=B2, B4, B5, B12, B13, B14, B66, B71 CAT-1version: GSM=900,1800 FDD-LTE=B1, B3, B5, B8 TDD-LTE=B34, B38, B39, B40, B41 |
| Safety Certification (EMC) | EN55022:2006orA1:2007 (CE & RE) ClassBIEC61000-4-2 (ESD) Level4 IEC61000-4-3 (RS) Level4 IEC61000-4-4 (EFT) Level4 IEC61000-4-5 (Surge) Level3 IEC61000-4-6 (CS) Level4 IEC61000-4-8 (M or S) Level 4 |
| Case | Metal case |
| Protection | IP30 |
| Mounting | DIN-Rail Mounting |
| Working Humidity | 5%RH to 95%RH |
| Working Temperature | -40°Fto176°F (-40°Cto 80°C) |
| Storage Humidity | 5%RH to 95%RH |
| Storage Temperature | -40°Fto185°F (-40°Cto85°C) |
| Size | 3.19in(L)x1.77in(W)x3.66in(H) (81mm(L)×45mm(W)× 93mm(H)) 3.19in(L)x1.18in(W)x3.66in(H) (81mm(L)×30mm(W)× 93mm(H)) |
