Overview

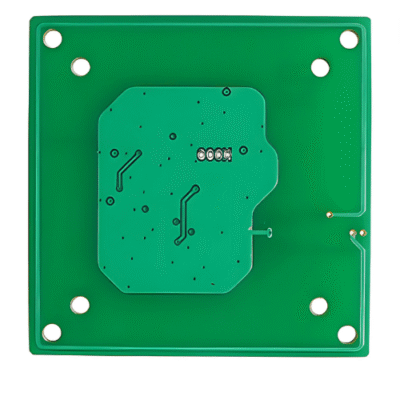

The Inventory Master HF RFID Reader Module with Antenna is integrated designing. The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability. It has various functions and supports multi-ISO or IEC standard of contactless card. The RF protocol is complex. The design combined some frequently used command of RF card and then user could operate the cards with full function by sending simple command to the module.
Technical Specifications
| Working Frequency | 13.56 MHz |
| Protocol | ISO 14443 A, ISO 14443 B, ISO 18092 |
| Power Supply | DC 5 V (± 10%) |
| Interface | IIC, UART, USB HID |
| Communication Rate | IIC Max 200 Kbps UART 19200 bps, 9600 bps, 38400 bps, 57600 bps, 115200 bps |
| Interface Level | 3.3 V (TTL level, 5V tolerance) |
| Power Consumption | 100 mA |
| Operating Distance | 3.15 in (80 mm) |
| Operating Temperature | -13 oF to 185 oF (-25 oC to 85 oC) |
| Storage Temperature | -40 oF to 257 oF (-40 oC to 125 oC) |
| Dimension | 2 in x 2 in x 0.20 in (50.8 mm x 50.8 mm x 5 mm) |
| Weight | 0.71 oz (20 g) |
