Overview

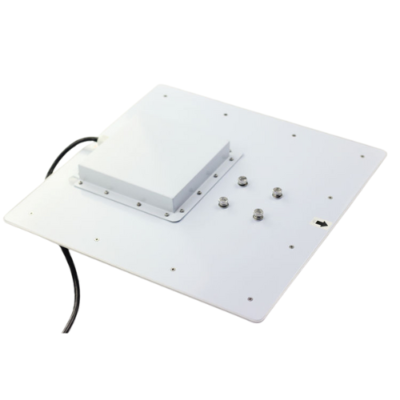

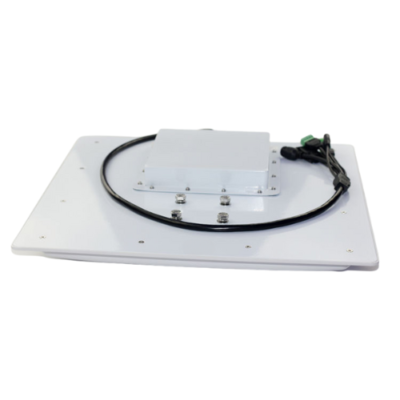

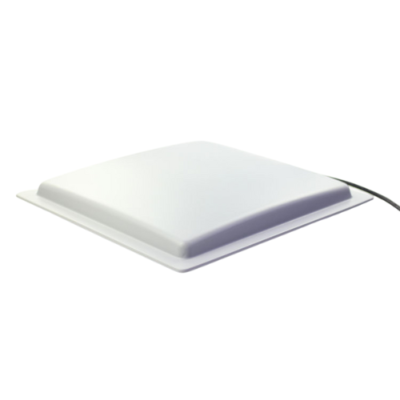

The Inventory Master Integrated Fixed UHF RFID Reader has fast reading speed and waterproof design to meet demanding work environment. It can read tags (cards) in multiple formats. The card reader is suitable for indoor and outdoor applications and is suitable for a wide range of RFID applications
Technical Specifications
| Materia | Die-cast aluminum + Plastics |
| Air Protocol | EPC global UHF Class 1 Gen 2 I50 18000-6C |
| Frequency | 902 MHz to 928 MHz FCC 865 MHz to 868 MHz ETSI |
| Input Voltage | DC 12V to 24V |
| Standby Current | < 100 mA |
| Work Current | ≤ 800 mA at DC 12 V Input 30 dBm |
| Output Power | 0 dbm to 33 dBm |
| Output Power Precision | ± 1dB |
| Output Power Flatness | ± 0.2dB |
| Receive Sensitivity | < -75 dBm |
| Reading Rate | > 400 tags per s |
| Antenna Gain | 12 dBi (Circular) |
| Reading Range | 0 ft to 98.42 ft (0 m to 30 m) |
| Writing Range | 0 ft to 49.21 ft (0 m to 15 m) |
| Tag RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Host Communication | RS-232, Wiegand, RS485, TCP/I |
| GPIO | 2 input optical coupling 2 output coupling (option) |
| Band Rate | 115200 bps |
| IP Class | IP67 |
| Operating Temp. | -4 °F to 149 °F (- 20 °C to 65 °C) |
| Storage Temp | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity | -5 % RH to 95 % RH (no condensation) |
| Dimensions | 17.51 in x 17.51 in x 2.55 (445 mm x 445 mm x 65 mm) |
| Weight | 2.20 lb (1 kg) |
