Overview

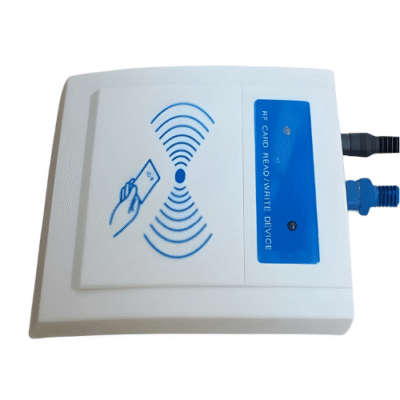

TCP/IP Network Reader for RFID access control, with Wiegand output, 125 KHz or 13.56 MHz frequency, IP65, and LED status indicators.
Technical Specifications
| Output Format | Wiegand 26 or 34 |
| Frequency | 125 kHz or 13.56 MHz |
| Voltage | 12 V |
| Current | 70 mA |
| Reading Range | 0.39 in to 3.94 in (1 cm to 10 cm) |
| Color | White |
| Waterproof | IP65 |
| Weight | 0.66 lb (0.3 kg) |
| Support | MDI or MDIX, TCP Server, TCP Client, UDP Server, UDP Client and DHCP |
| Effective distance | Larger than 1.97 in (5 cm) |
| Power Supply | 5 V DC |
| Power Consumption | Less than 250 MA |
| Working Temperature | -4 °F to 167 °F (-20 °C to 75 °C) Storage: -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 5.59 in x 3.94 in x 1.22 in (142 mm x 100 mm x 31 mm) |
| Material | ABS |
