Features
- Material ABS & Resin adhesive construction
- Frequency Supports 125kHz optional 13.56MHz
- Support cards Compatible with TK4001 or EM4100, etc
- Read Range ID card 3.1496 inches, IC card 2.7559 inches
- Reader Interval Fast response, <0.5 seconds
- Format Various formats including Wiegand 26 or 34, RS232 or RS485
- Transmission Distance Long-distance transmission options available
- Size Compact dimensions, 45,108.307 inches
- Weight Lightweight at 0.4189 pounds
Technical Specifications
| Product Name | 125khz rfid em card reader |
| Material | ABS & Resin adhesive |
| Frequency | 125KHz optional 13.56MHz |
| Support Cards | TK4001 or EM4100 etc. |
| Read Range | ID card: 3.14961in to 7.87402in (8 cm to 20 cm)IC card:1.1811in to 2.75591in (3 cm to 7 cm) |
| Operating Voltage | DC 9 V to 16 V |
| Consumed Current | <60 mA |
| Reader Interval | <0.5 S |
| Format | Wiegand 26 or Wiegand 34 or RS232 or RS485 optional |
| Distance Of Transmission | WG26 or WG34< 328.084feet ,100M, RS232< 32.8084feet ,10m, RS485< 3937.008feet 47244.094 inches. |
| Operating Temperature | -13°F to 167°F (-25℃ to +75℃) |
| Size | 4.488in x 2.992in x 0.630in (114 mm x 76 mm x 16 mm) |
| Weight | 6.70548ounces (190 g) |
| Lead Length | 6.890 inches ± 7.283 inches. (180 mm ±5mm) |

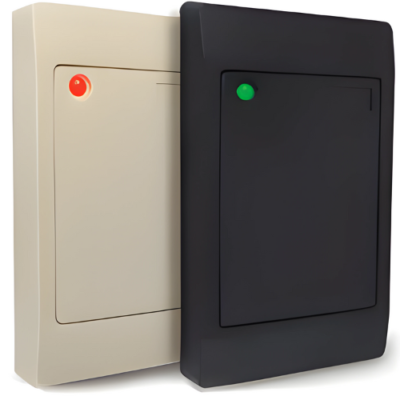

| Status Indication | 1PC LED (Red means standby, Green means reader success) |
