Overview
The Inventory Master programmable ibeacon Bluetooth is a BLE 4.0 or 5.0 iBeacon Eddystone beacon with motion sensor or 3-axis accelerometer. It is the most classical design in the SATECH beacon family and patented by SIPO and EUIPO. Beautiful design, high waterproof level, small but excellent transmitting range and battery life make it the most popular solution launched in the globe.
Features
- Key chip NRF 52832 (NRF 52810 optional)
- Casing material is ABS and PC
- iBeacon and Eddystone dual protocol
- 6 broadcast packets iBeacon, UID, URL, TLM, Info, Acc Sensor
- Power supply 1 x CR 2477 button cell
- Battery duration 3 years Max.
- Waterproof level IP 67
- BLE 5.0 SDK for development support
Technical Specifications
| Key feature | iBeacon Eddystone beacon |
| Chipset | N 52832, N 52810, LIS3 |
| System development support | Demo App, SDK and API, etc. |
| Transmission range | 656.2 ft (200 m) Max. (in open field) |
| Battery type | 1 x CR 2477 button cell |
| Battery lifetime | 2 yrs to 3 yrs |

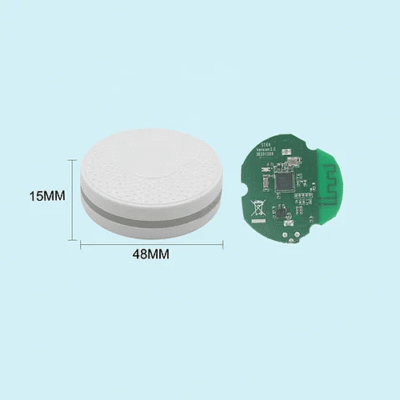

| Dimensions | 1.9 in x 0.59 in (48 mm x 15 mm) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
