Technical Specifications
| Frequency | 865 MHz to 868 MHz (EU), 902 MHz to 928 MHz (US) |
| Protocol | ISO18000-6C / EPC C1 GEN2 |
| RF Power Output | 2 dBm to 25 dBm |
| Interface | USB, RS232, TTL (UART) |
| Gain Antenna | 3 dBi |
| Read Range | 3.28 ft to 9.84 ft (1 m to 3 m) (depends on tags) |
| Read Speed | > 50 pcs tags per s |
| Tags Storage | 200 labels at 96-bit EPC |
| Power Supply | 35 V to 5 V |
| Standby Current | < 80 mA (EN feet high level) |
| Sleeping Current | < 100 uA (EN pin low level) |
| Operation Current | 180 mA at 3.3 V (26 dBm output, 77 °F (25 °C)) 110 mA at 3.3 V (18 dBm output, 77 °F (25 °C)) |
| Receive Sensitivity | < -70 dBm |
| Heat-Dissipating Method | Air cooling (without external heat sink) |

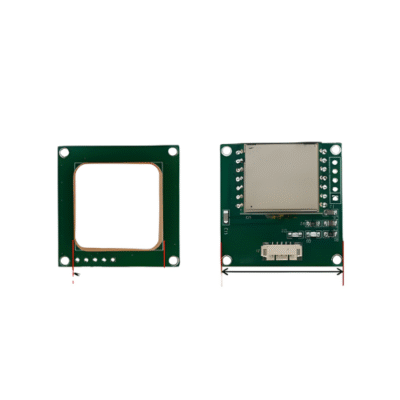

| Module Size | 1.9 in x 1.9 in (50 mm x 50 mm) |
| Dimension | 1.96 in × 1.96 in × 0.09 in (50 mm × 50mm × 2.5mm) |
