Overview

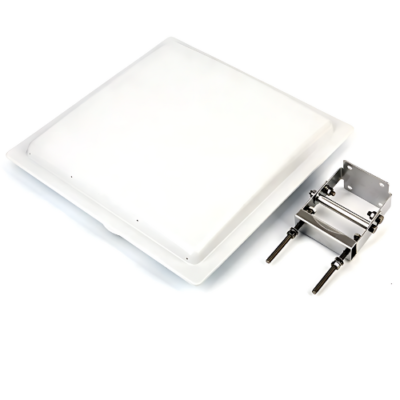

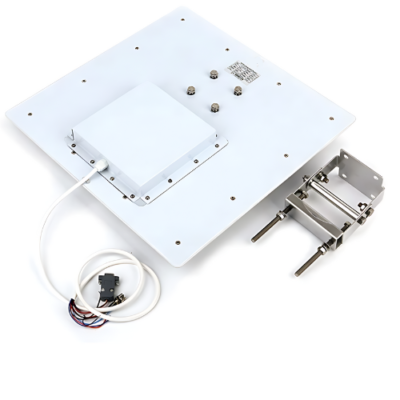

The Inventory Master Integrated Long Range RFID UHF Card Reader can support multiple protocols, integrated design, multiple tag reading, anti-collision, suitable for logistics and warehouse management, car parking system, access control, access control assistance, bus transportation, etc. It can read and write, reading and recognition at high speed. This is a popular embedded reader, compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B. It is an industrial-quality product for harsh environments, has IP-65 waterproof protection housing, and is easy to install.
Features
- Support ISO18000-6C and ISO18000-6B protocol
- RS485, Wiegand26/34, RJ45 communication interface support
- Advanced tag collision processing algorithm, High literacy rate
- High-Speed writing data
Technical Specifications
| Protocol | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Range | Standard ISM 902 MHz to 928 MHz or ISM 865 MHz to 868 MHz, other |
| Operation Mode | FHSS or fixed frequency (set by software) |
| RF Power | 0 dBm to 30 dBm, software adjustable |
| Reading Speed | Software Programmable, Average Reading per 64 Bits: < 6 ms |
| Reading Mode | Timing or Touch, Software Programmable |
| Data Ports | Standard: Wiegand26/34 or RS485 or RS232; Software Programmable Optional: TCP/IP (RJ45) |
| Data Input Port | Trigger input one team |
| Reading Range | Max 39.37 ft (12 m) |
| Reading Clue | Buzzer |
| Antenna | Built-in line polarization Antenna, Gain: 12 dBi |
| Power Supply | DC 9 V (Power Adapter) |
| Operation Temp | -4 °F to 176 °F (-20 °C to 80 °C) |
| Dimension | 17.32 in x 17.32 in x 1.96 in (440 mm × 440 mm × 50 mm) |
| Weight | 9.92 lb (4.5 kg) |
