Overview

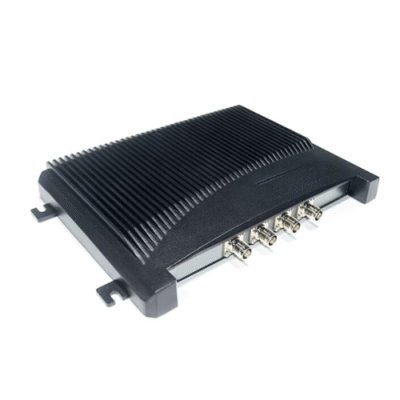

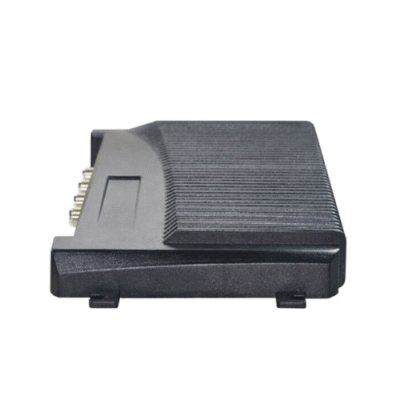

Experience seamless RFID tag management with our versatile reader, featuring anti-collision tech and multi-tag identification. Compatible with ISO18000-6C.
Features
- Special anti-collision algorithm
- High efficiency of multi-tag identification capability
- Compatible with ISO18000-6C (EPC-GEN2) protocol
- Read or Write tag capability
- Supports multi tags identification
- Single tag read and write, lock and Kill tag, etc
- Can connect with 1 to 4 (7 dBi, 9 dBi,12 dBi) antennas
- It can apply to multi-point reading environment solution
Technical Specifications
| Body Material | Die-cast aluminum |
| Input Voltage | DC 12 V to 18 V |
| Manufacturer or Chip | Impinj R2000 |
| Interface Protocol | EPC global UHF Class 1 Gen 2 or ISO 18000-6C or ISO 18000-6B |
| Spectrum Range | 902 MHz to 928 MHz, 865 MHz to 868 MHz or Optional |
| Read Distance | 16.04 ft to 39.3 ft (5 m to 12 m) (depending on Tags) |
| Supported Regions | US, Canada, and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China, Taiwan, Korea, Malaysia |
| Output Power | 0 dBm to 33d Bm |
| RF Connector | TNC/RP-TNC |
| Peak Inventory Speed | >700 tags per s |
| Tag Buffer Capacity | 1000 tags at 96 bits EPC |
| Host Communication | RS-232 or TCP/IP |
| Size | 9.4 in x 7.08 in x 1.1 in (240 mm x 180 mm x 28 mm) |
| Weight | 2.6 lb (1.2 kg) |
