Overview
The Inventory Master Module is a new product series made by Helter team, mainly for LoRa/Lora WAN node applications.CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the Soc® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the Lora WAN protocol stably, can easily connect lithium batteries and solar panels.
Features

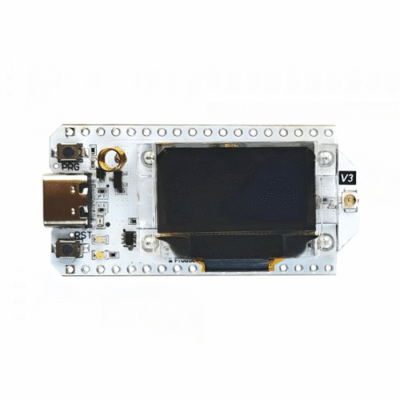

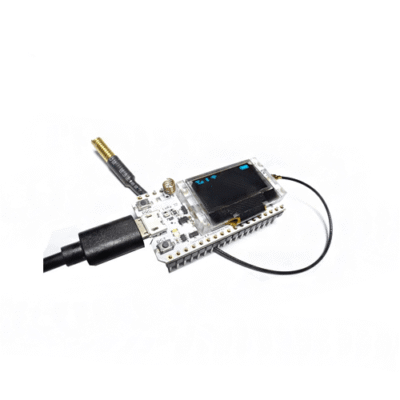

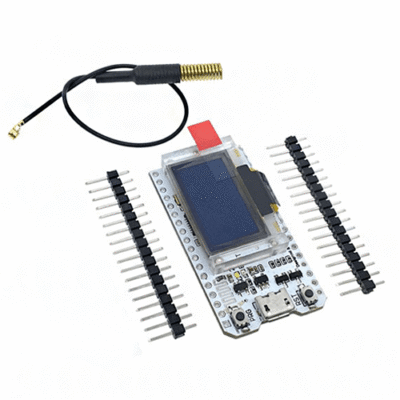

- LoRa-based IoT Dev-board
- ASR6502 Chip
- Integrated Lithium BMS
- CP2102 USB Connectivity
- Compact Size: 50.9 x 22.9 x 8 mm
- LoRa Module for Wireless Communication
Technical Specifications
| Source | Parameter |
| LoRa maximum output power | 22 ±1dB |
| Hardware resources | UART x 2; SPI x 2; I2C x 2; SWD x 1; Adcox 312 – bits ADC; 8 – channel DMA engine 14 x GPIO |
| FLASH | 128 KB internal FLASH |
| Interface | Micro USB x 1; LoRa (IPEX) x 1 |
| USB-UART bridge | CP 2102 |
| Battery Type | 3.7 V Lithium |
| Size | 2.00 in x 0.90 in x 0.31 in (50.9 mm x 22.9 mm x 8 mm) |
