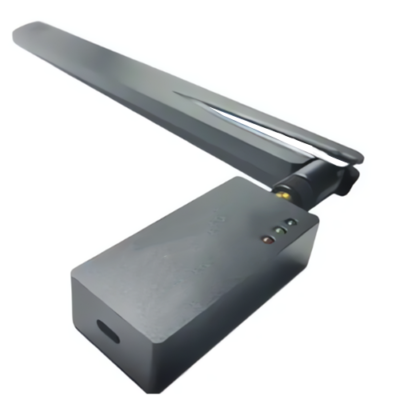

LoRa Gateway with 8 Channels and 20dBm Output – The Inventory Master

Name: LoRa Gateway with 8 Channels and 20dBm Output – The Inventory Master - The Inventory Master
SKU: TIMLRLGH-204

Discover the LoRa gateway with 8 channels, supporting LoRaWAN Classes, and frequencies from 433 to 915 MHz for versatile applications.

SKU: TIMLRLGH-204 Category: LoRaWAN networks

Features

LoRa Baseband Chip	SX1308
Control Channels	8 Channels
Digital Baseband chip	SX1308
Supply Voltage	5 V
Communication Interface	SPI or USB
Frequency Range	433 MHz, 868 MHz, 915 MHz
Interface	SPI or USB
Maximum Output	20 ± 1 dBm
Supported Protocols	LoRaWAN Class A, Class B, Class C
Operating System Support	Windows® (7, 8, 10 or higher), Linux (Raspberry Pi®)
Receiving Sensitivity	-142.5 dBm @ 300 BPS
Size	2.59 in (+0.39 in) x 1.18 in x 0.59 in (6.6(+1) x 3 x 1.5 cm)
Working Temperature	-40 °F to 176 °F (-40 °C to 80 °C)
