Overview

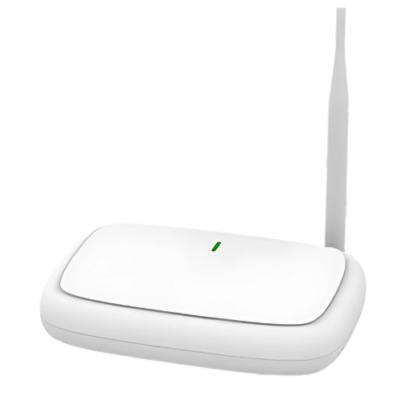

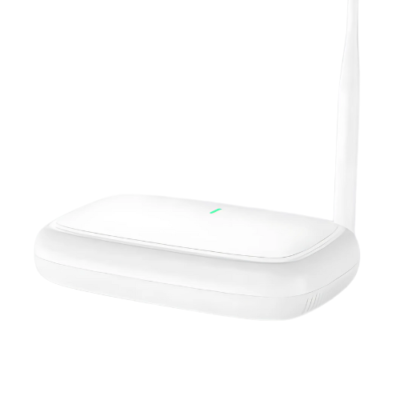

The Inventory Master’s LoRaWAN AI-optimized gateway with multi-backhaul & security is an all-in-one IoT gateway solution, blending Bluetooth®’s real-time insights with LoRaWAN®’s reach to tackle indoor and outdoor challenges effortlessly. It outperforms in whether tracking warehouse assets via its 600m Bluetooth® range or monitoring remote sensors through LoRaWAN®’s 2000 m² coverage. LoRaWAN®’s building-penetrating signals build a stable network in even complex settings. It’s all-round connectivity (4G LTE, Wi-Fi, Ethernet) keeps data flowing globally. Backed by edge computing and AI-driven traffic optimization, the MG6 4G gateway processes data locally to free up bandwidth for critical tasks. Meanwhile, data security suite (AES-128, WPA3, device and user dual authentication) secures your IoT network. Built modularly to adapt with your evolving needs and sipping just 2.4W of power, it’s the future-proof, borderless solution for smart cities, logistics, or industrial IoT.
Features
- Global frequency band support
- Multi-backhaul connectivity
- AI optimized traffic control
- Data security suite
- Bluetooth
Technical Specifications
| Material | ABS and PC |
| Power Supply | DC 12 V or 1 A, POE (IEEE 802.3 af ) |
| Network Connection | Wi-Fi or ethernet or LTE |
| Working Environment | Indoor |
| Firmware Update | OTA or LAN or TF card |
| Bluetooth Frequency | 2.4 GHz to 2.4835 GHz |
| Bluetooth Scanning Range of 1968.5 ft (600 m) | 1500 m2 to 2000 m2 LoRaWAN network coverage |
| Data Security | 2.4 W low power consumption |
| Operating Humidity | 5 % RH to 95 % RH, no condensation |
| Operating Temperature | -4 °F to 122 °F (- 20 °C to 50 °C) |
| Size | 7.78 in x 6.3 in x 1.69 in (197.5 mm x 160 mm x 43 mm) |
