Overview

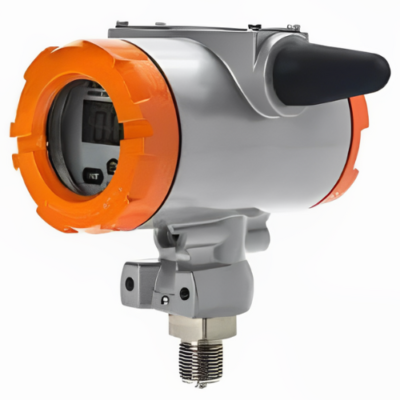

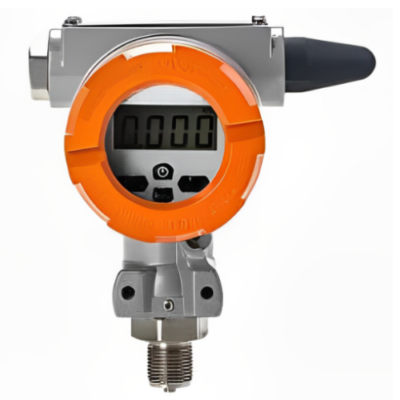

The Inventory Master’s LoRaWAN Explosion-Proof Digital Pressure Gauge is a battery-powered, low-power device with wireless digital output. It supports 4G, LoRa-IoT, and NB-IoT communication, featuring a built-in laser-welded pressure sensor for high accuracy and long-term stability. With an LCD display, MCU, and low-power design, it wirelessly transmits real-time pipeline pressure to the cloud. Made with 304 joints and a cast aluminum housing, it is explosion-proof and shock-resistant. Suitable for gas, liquid, and oil, it offers an adjustable upload rate from 1 minute to 24 hours.
Features
- Bluetooth configuration
- Built-in MCU
- Low power consumption design
- Explosion proof certification
Technical Specifications
| Vacuum Range | (0 to -100) kPa |
| Compound Range | (-0.1 to 0.1) MPa, (-0.1 to 0.25) MPa, (-0.1 to 0.4) MPa, (-0.1 to 0.6) MPa, (-0.1 to 1.0) MPa, (-0.1 to 2.5) MPa, (-5 to 5) kPa, (-10 to 10) kPa, (-25 to 25) kPa, (-50 to 50) kPa |
| Micro Pressure Range | (0 to 5) kPa, (0 to 10) kPa, (0 to 25) kPa, (0 to 50) kPa, (0 to 100) kPa |
| Conventional Range | (0 to 160) kPa (0 to 250) kPa (0 to 400) kPa (0 to 600) kPa (0 to 1) MPa (0 to 1.6) MPa (0 to 100) MPa |
| Mounting Rnterface | M 20 x 1.5 G 1/2 G 1/4 and other standard threads |
| Accuracy Level | 0.5 level 1.0 level |
| Display Digits | 4-digit LCD display |
| Backlight | White backlight |
| Power Supply | 3.6 V (lithium battery, users can replace it by themselves) 220 V or 12 V power supply is also optional |
| Measuring Medium | Water, oil and gas are non-corrosive medium to stainless steel |
| Protection grade | IP67 (certified) |
| Connection type | Radial direction |
| Indicating pressure reference | General pressure gauge |
| Measuring range | Vacuum gauge |
| Test temperature | 68 ºF to 140 ºF (-20 ºC to 60 ºC) |
| Storage temperature | -104 ºF to 185 ºF ( -40 ºC to 85 ºC) |
| Relative humidity | <85 % |
