Overview

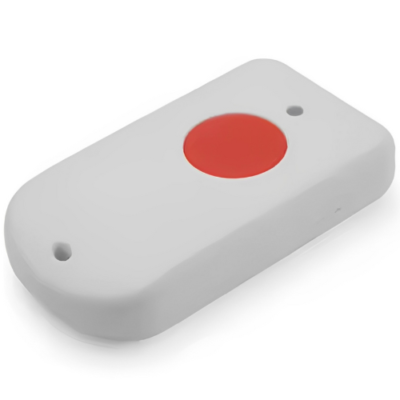

The Inventory Master’s LoRaWAN GPS tracker with Wi-Fi & BLE for smart homes is an open source LoRaWAN Tracker based on ESP32 MCU and Semtech LoRa Wireless Chip. In this, there are various sensors such as GPS, WiFi, BLE, Temperature, Humidity, Motion Detection, and Buzzer. Users can use it for different tracking scenarios. It is program friendly. Developers can use Arduino IDE to customize the software to fit their IoT solution. The LoRa wireless technology used in it allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional tracking services. It is equipped with a 1000mAh Li-on rechargeable battery. Each device has a worldwide unique OTAA keys to join the LoRaWAN network.
Features
- Arduino IDE compatible
- Open-source hardware or software
- Real-time GPS, BLE, Wi-Fi tracking
- Motion sensing
- Power monitoring
Technical Specifications
| MCU | ESP32 PICO D4 |
| Bluetooth | Bluetooth V 4.2 BR or EDR and Bluetooth LE |
| Wi-Fi | 802.11 b or g or n (802.11 n up to 150 Mbps) |
| Integrated SPI Flash | 4 MB |
| RAM | 448 KB |
| EEPROM | 520 KB |
| Clock Speed | 32 MHz |
| Supply Voltage | 5 V via USB port or internal li-ion battery |
| Operating Temperature | 10 M or 100 M or 1000 M |
| Frequency Range | 168 dB maximum link budget |
| Band 1 (HF) | 862 MHz to 1020 MHz |
| RF Output | +20 dBm to 100 mW constant |
| PA | +14 dBm high efficiency |
| Programmable Bit Rate | Up to 300 kbps |
| High Sensitivity | Down to -148 dBm |
| RX current | Low 10.3 mA, 200 nA register retention |
| Synthesizer | Fully integrated with resolution of 61 Hz |
| Modulation | FSK, GFSK, MSK, GMSK, LoRaTM and OOK |
| RSSI | 127 dB dynamic range |
| Packet engine | Up to 256 bytes with CRC |
| Communication | LoRaWAN 1.0.3 specification |
| Battery | 1000 mA li-ion battery power |
| Power consumption | Sleep mode: 200 uA LoRa transmission mode: 125 mA at 20 dBm 44 mA at 14 dBm Tracking: max: 38 mA |
| Chipset | SX1302 |
| Operating temperature | -40 °F to 140 °F (- 40 °C to 60 °C) |
